Executive Summary (TL;DR): The Baison Laser G24 Horizontal 2-Chuck Laser Tube Cutting Machine is purpose-built for structural steel, heavy guardrails, and heavy machinery manufacturing. Supporting a maximum single-tube weight of 300 kg, it seamlessly handles 240mm round/square tubes, 200×200mm H-beams, channel steel, and I-beams.
By synchronizing dynamic variable-diameter roller supports with pneumatic double-row roller chucks, the G24 eliminates heavy-tube drooping and centrifugal vibration, delivering a rock-solid positioning accuracy of ±0.03 mm/m. Combined with an intelligent centering system and professional nesting software, it slashes scrap rates and significantly compresses order fulfillment lead times.
Heavy Structural Steel Tube Fabrication: The Hidden Costs Draining Your Shop Floor
Processing 6-meter (or longer) heavy channel steel, I-beams, and large-diameter square tubes typically yields high-margin orders for steel structure fabricators. However, physical bottlenecks during production create hidden costs that quietly erode gross profits.
Even with ample laser generator power, failing to achieve stable clamping and precise dynamic support on long, heavy profiles inevitably leads to batch defects. In daily shop floor operations, fabricators frequently face three core headaches:
- Tube Drooping Under Self-Weight & High-Speed Centrifugal Chattering: Long, heavy profiles naturally sag in the center due to gravity. Without dynamic mid-span support, high-speed rotation triggers violent centrifugal chattering. This causes continuous laser focus offset, bevel cut errors, and out-of-tolerance dimensions—scrapping costly heavy steel and derailing delivery schedules.
- Asymmetric Clamping Slippage & Lost Positioning Accuracy: Channel steel, H-beams, and I-beams feature asymmetrical cross-sections, making balanced forces difficult for standard chucks. Jaws loosen and workpieces slip during processing, leading to inconsistent product dimensions that require hours of costly manual straightening and rework.
- Fragmented Multi-Step Workflows & Inflated Material Handling Expenses: Traditional fabrication relies on a saw for cutting, manual scribing, a drill press for hole-making, and subsequent deburring. These disconnected steps depend heavily on senior machinists. Moving heavy profiles back and forth between machines increases collision damage risks and inflates total lead times.
⚠️ Are heavy tube vibration and high scrap rates quietly cutting into your shop’s bottom line? Contact our engineering team today for a free custom process evaluation based on your specific profile specs.
For a broader overview of matching machine power, clamp diameters, and ROI, refer to our comprehensive Heavy Duty Laser Pipe Cutter Selection Guide: Master Power, Diameter & ROI.

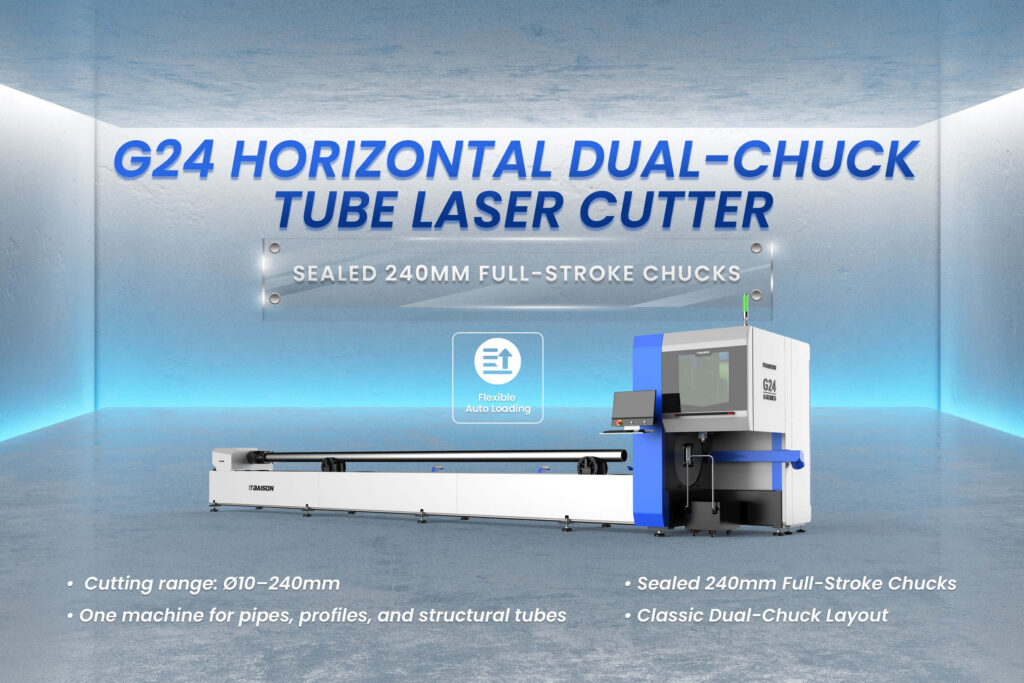

Baison G24 Heavy-Duty Tube Cutter: Engineered to Eliminate Sagging & Chattering
Developed specifically for heavy profiles and extra-long tubes, the G24 horizontal two-chuck laser tube cutting machine targets and eliminates these exact production bottlenecks from the structural mechanical level.
1. 300kg Heavy-Duty Twin Chucks: Solid Clamping for Heavy Profiles

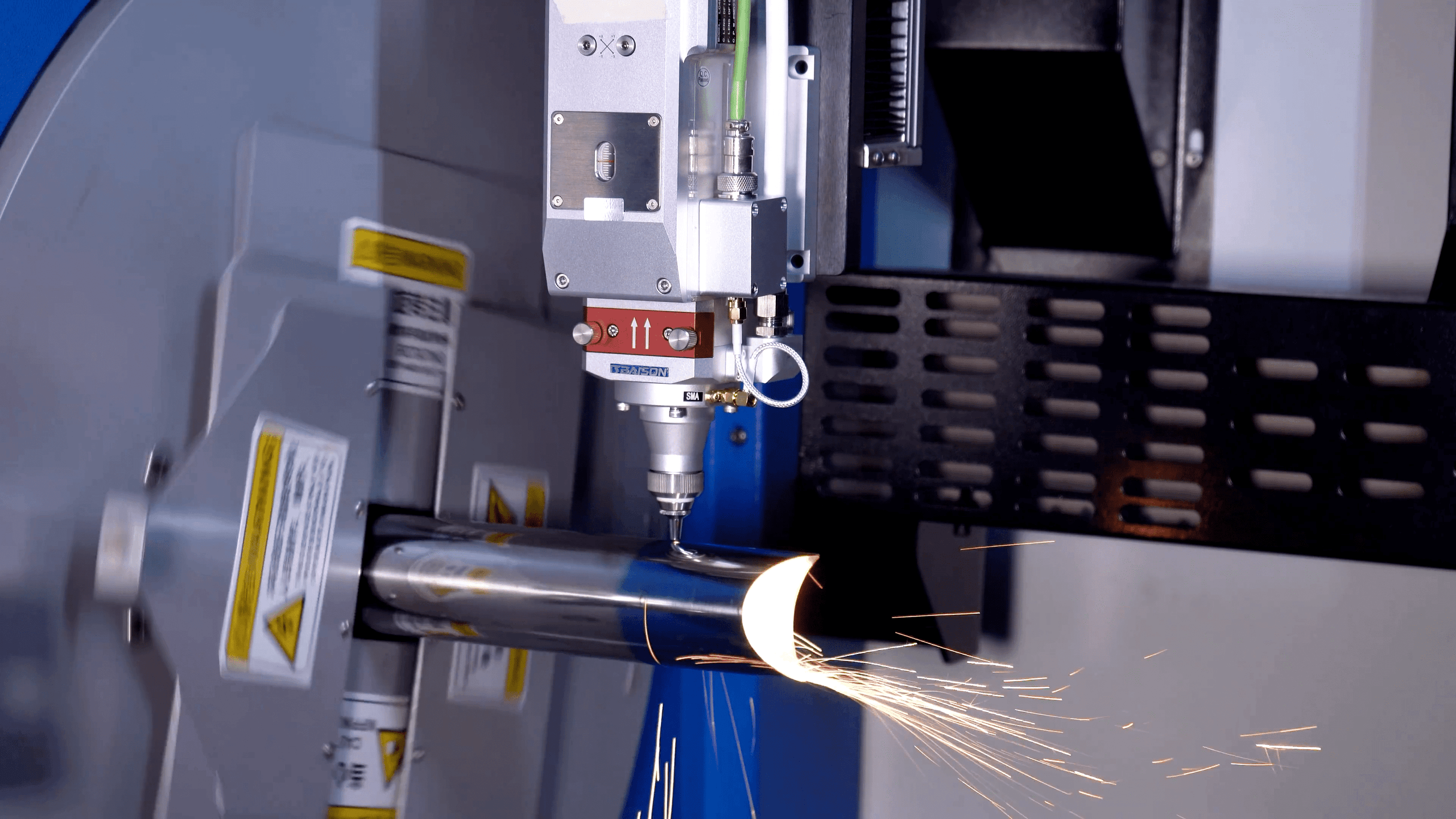

The G24 supports a maximum single-tube weight of 300 kg. Its square through-hole chucks accommodate Φ10–240 mm round tubes as well as 10–240 mm square and rectangular tubes. Driven by direct-push pneumatic cylinders with double the power and a steel-belt roller synchronization mechanism, the chuck features low rotational inertia and speeds up to 107 r/min. It locks workpieces securely during high-speed cutting, eliminating slippage and axial displacement at the source.
2. Dynamic Variable-Diameter Roller Support System: The Key for Long, Heavy Profiles
This dynamic structure is the critical core design for processing tubes over 6 meters. Variable-diameter wheels dynamically lift and support the tube along the cutting travel path, counteracting drooping caused by self-weight and suppressing left-right sway during rotation. This maintains straightness across the entire profile length, preventing focus offsets and cutting defects.
3. Full-Range Heavy Profile Coverage with Optional Professional Nesting Software
The machine natively supports: 5#–20b# channel steel, 2#–10# angle iron, 10#–20b# I-beams, and up to 200×200mm H-beams.
💡 Pro Tip for Complex Profiles: For asymmetrical profiles like H-beams and I-beams, we strongly recommend opting for the Professional Nesting Software module. The system automatically calculates intersection lines and generates precise cutting paths, enabling high-efficiency nesting without expensive manual 3D modeling or trial cuts.
👉 Click here to explore full Baison G24 product specs & technical parameters
How Technical Capabilities Translate to Real Business ROI
Machine specs must deliver measurable financial improvements on the shop floor. The G24 drives operational improvements across four key dimensions:

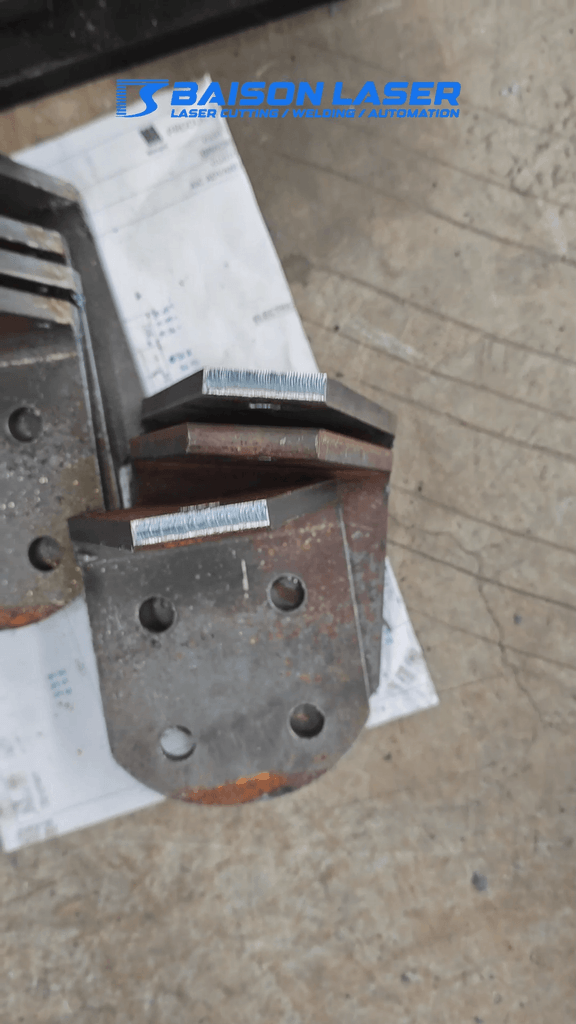

- Drastically Reduced Scrap Rates: Dynamic roller supports eliminate centrifugal chattering, maintaining a steady positioning accuracy of ±0.03 mm/m. This ensures batch-to-batch consistency and prevents raw material waste on high-value heavy steel.
- Minimized Material Tailings Waste: Optimized tailing clamping control keeps single-chuck tailing lengths ≥115 mm, with a minimum processed part length at the tail end ≤400 mm. Paired with smart nesting software, this maximizes total steel utilization.If minimizing material scrap on premium raw materials is your top priority, explore our breakdown on Cut Heavy Structural Steel Without Waste Using Zero Tail Stock Technology to discover advanced tailing-saving mechanisms.

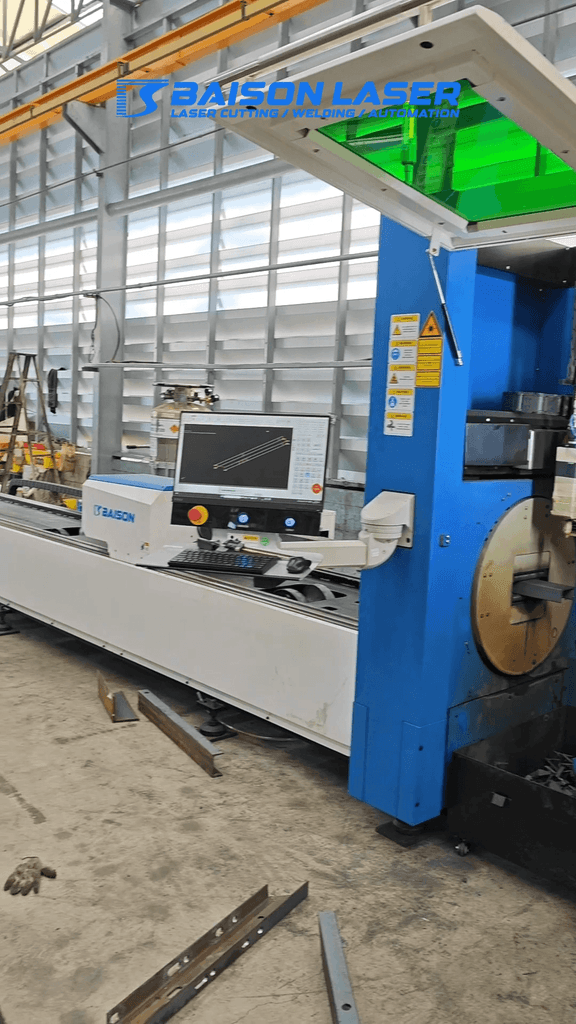

- Reduced Dependency on Skilled Operators: Powered by the Weihong NcStudio V15 laser cutting system, the G24 features a built-in process database, auto-centering, and real-time tube deviation correction. Entry-level operators can run production independently after short-term training, easing hiring pressures and labor overhead.

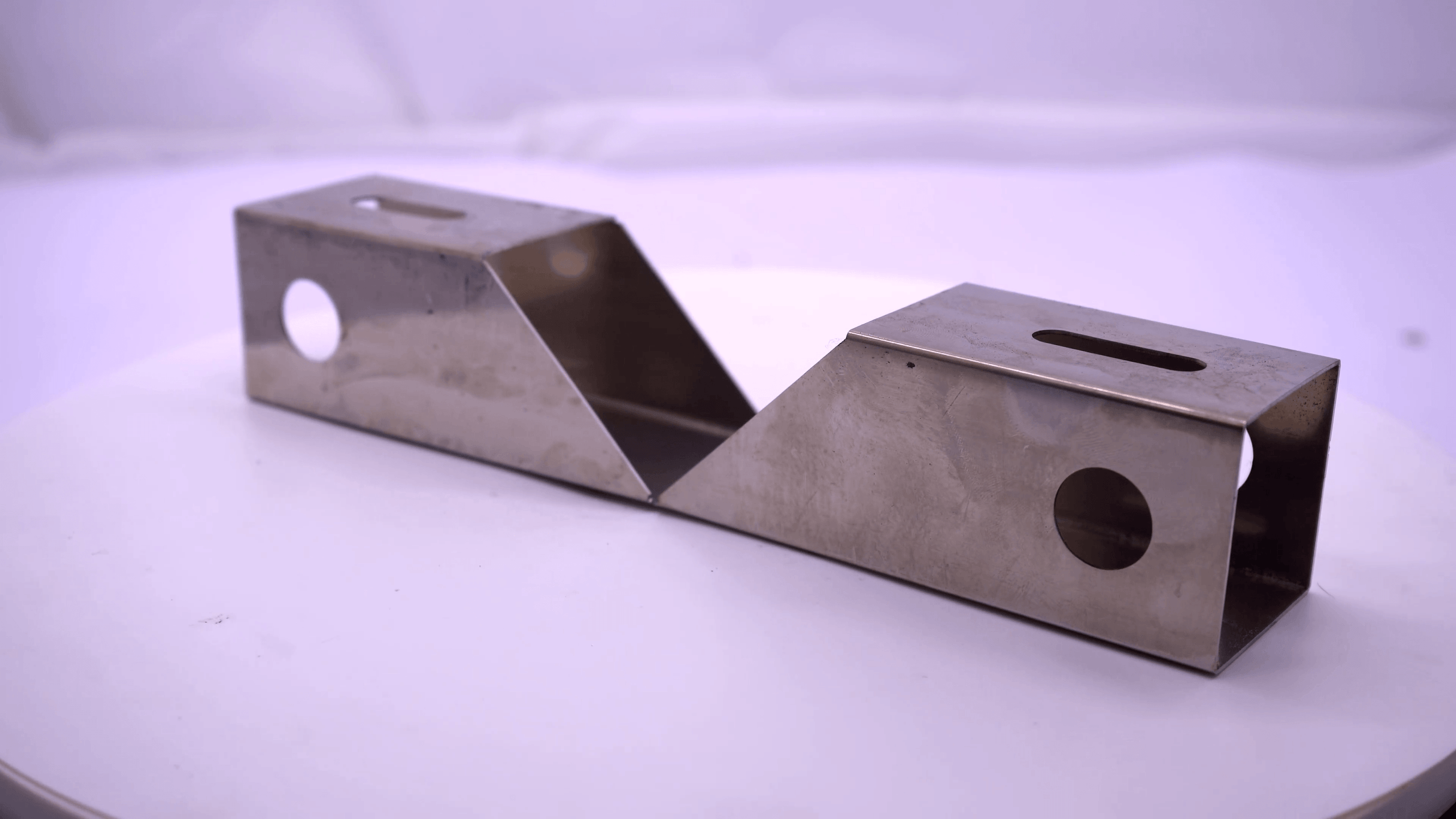

- Process Consolidation to Shrink Lead Times: Perform cutting, hole-punching, and intersection line beveling in a single clamping setup. Eliminating sawing, drilling, and multi-station transfers condenses delivery cycles.
Conventional Fabrication vs. Baison G24 Solution
| Evaluation Dimension | Traditional Process (Saw + Drill Press + Manual Scribing) | Baison G24 Horizontal 2-Chuck Laser Tube Cutter |
| Workflow Integration | Disconnected sawing, drilling, and beveling; long transit times between stations. | Single-clamping setup performs cutting, piercing, and intersection line cutting in one seamless pass. |
| Long & Heavy Tube Support | Lacks dynamic follow-up support; long tubes sag and deform eccentrically when rotated. | 300kg heavy load + dynamic roller support eliminates drooping and chattering to protect cutting accuracy. |
| Special-Shaped Profile Flexibility | Extremely difficult on H-beams and channel steel; requires massive manual labor hours. | Natively supports channel steel, angle iron, I-beams, and H-beams (with optional professional nesting software). |
| Material Loss & Waste | Wide saw kerfs and long tailing waste lead to high long-term raw material loss. | Optimized tailing control + smart nesting dramatically increases overall steel yield. |
📊 Business Takeaway: By adopting the G24, fabricators can handle high-volume structural steel orders with less labor while capturing higher net profits per order through raw material savings and reduced labor hours.
Operational Cost & ROI Breakdown (3000W / 6000W Configurations)
Note: ROI calculations are based on full-capacity shop production. Actual payback periods vary depending on workpiece geometry, operating hours, and local utility rates.
Power Consumption (380V / 50Hz)
- 3000W Model: Peak power 43.15 kW; average actual power consumption approx. 32.36 kWh.
- 6000W Model: Peak power 67.85 kW; average actual power consumption approx. 50.89 kWh.
Consumables & Auxiliary Gas Costs
- Consumables: Standard wear parts (nozzles, protective lenses) average approx. $0.07 / hour ($0.50 RMB/hr).
- Auxiliary Gas: Using dried compressed air keeps operating costs tied primarily to compressor electricity; Oxygen (O2) or Nitrogen (N2) costs fluctuate based on local industrial gas markets.
Comprehensive Return on Investment (ROI)
By replacing multiple traditional machine tools, minimizing scrap, and reducing manual labor, most heavy fabrication shops recover their complete equipment investment within 6 to 12 months under full production loads.
❓ Want to know your exact ROI based on your local electricity rates and tube specifications? Keep reading or request a customized cost-benefit analysis from our team below.
Frequently Asked Questions (FAQ)
Q1: How does the G24 guarantee cutting accuracy when processing heavy channel steel or H-beams over 6 meters long?
Answer: The machine combines pneumatic double-row roller chucks with dynamic variable-diameter roller supports. During rotation and feeding, the support wheels dynamically cup the profile to prevent drooping and lateral sway. Paired with a high-precision motion platform (±0.03 mm/m positioning accuracy), it guarantees clean cut edges across long profiles.
Q2: What are the processing dimensions and maximum weight capacity of the G24?
Answer: The single-tube load capacity reaches 300 kg.
- Standard Tubing: Φ10–240 mm round tubes; 10–240 mm square and rectangular tubes.
- Structural Profiles: 5# – 20# channel steel, 2# – 10# angle iron, 10# – 20# I-beams, and 100×100 mm to 200×200 mm H-beams.
Q3: Why is professional nesting software required when cutting I-beams and H-beams?
Answer: H-beams and I-beams feature complex asymmetrical cross-sections that standard 3D CAD models cannot directly translate into 2D laser cutting paths. The professional nesting software module recognizes profile cross-sections and automatically outputs accurate intersection paths, eliminating costly trial-and-error waste.
Unsure if your CAD drawings need professional software conversion? Submit your drawings to Baison engineers for a free compatibility assessment.
Q4: How steep is the learning curve for operators, and what safety features are included?
Answer: Operating the G24 is straightforward thanks to the Weihong NcStudio V15 system, featuring a visual interface and automatic tube centering. Safety features include perimeter warning guards, emergency stop buttons, and travel limit alarms. Operators can run production independently after completing standardized factory training.
Q5: What after-sales warranty and service support are provided for international buyers?
Answer: Baison Laser provides a 1-year full machine warranty (excluding standard wear items like nozzles and lenses). Our service protocol guarantees a 2-hour response window upon receiving a report; if remote diagnostics cannot resolve the issue, field engineers are dispatched to arrive on-site within 24 hours.
To learn more about how our localized service teams protect your uptime, read Never Fear Machine Failure Again: Inside Baison Laser’s Global Support Network.
Q6: Is the 2-chuck G24 model suitable for processing ultra-long 12-meter tubes?
Answer: The standard G24 natively supports up to 12-meter tube lengths. However, if your facility handles continuous, high-volume production of extra-long and heavy profiles, contact our engineering team to compare performance against our 3-chuck heavy-duty series.
To avoid over-investing in equipment you don’t need, check out our in-depth comparison on Why Not Blindly Overpay for a 3-Chuck Laser Cutter? — Baison V36 Dual-Chuck Heavy-Duty Tube Cutting Solution before making a decision.
Next Steps: Request a Customized Fabrication Assessment for Your Shop
For steel structure fabricators and heavy tube processing facilities, the ability to stably and efficiently cut heavy profiles dictates order capacity and profit margins. The Baison Laser G24 delivers a cost-effective, heavy-duty upgrade backed by a 300kg payload capacity, anti-chattering roller supports, and multi-profile compatibility.
Ready to evaluate actual cutting speeds, material yields, and cost savings for your shop’s H-beams and large square tubes?
