TL;DR Core Conclusion: When processing long and thick-walled heavy pipes, blindly overpaying for complex, expensive 3-chuck or 4-chuck systems is unnecessary. Baison Laser’s V36 dual-chuck heavy-duty fiber laser tube cutting machine achieves a 1,000kg load capacity and high-precision machining for Φ20–360mm heavy tubes utilizing advanced over-travel cutting technology, 5 sets of servo-following supports, and a rigid dual-chuck structure.
It saves 20%–30% on initial capital investment while slashing tailings down to 160mm. It delivers a high-ROI, low-maintenance automated upgrade for elevators, steel structures, and heavy machinery manufacturers.
Industry Pain Points: Why You Shouldn’t Blindly Upgrade to a 3-Chuck Heavy Tube Cutter
In elevator manufacturing, heavy steel structures, wind tower fabrication, and construction machinery, processing long and heavy-duty pipes ranging from 6 to 12+ meters (such as large square tubes, channels, I-beams, and H-beams) has always been a workshop bottleneck. When selecting equipment, many plant owners fall into a traditional mindset: assuming that longer and thicker tubes automatically demand a 3-chuck or 4-chuck machine.
- Exorbitant Equipment Costs: Complex 3-chuck and 4-chuck systems inflate initial capital expenditures, dragging down a company’s Return on Investment (ROI) cycle.
- High Maintenance & Failure Rates: More chucks mean complex multi-axis linkage and higher daily wear. A single malfunction leads to costly downtime that cripples batch production.
- Hidden Material Waste: Conventional heavy-duty machines often leave tailings of 300mm to 500mm+ due to structural limitations, resulting in massive steel waste over time.
The core logic of modern manufacturing is to achieve more with less. Can a highly stable dual-chuck structure thoroughly conquer heavy tube processing? Absolutely—and Baison’s V36 series was engineered precisely for this purpose.

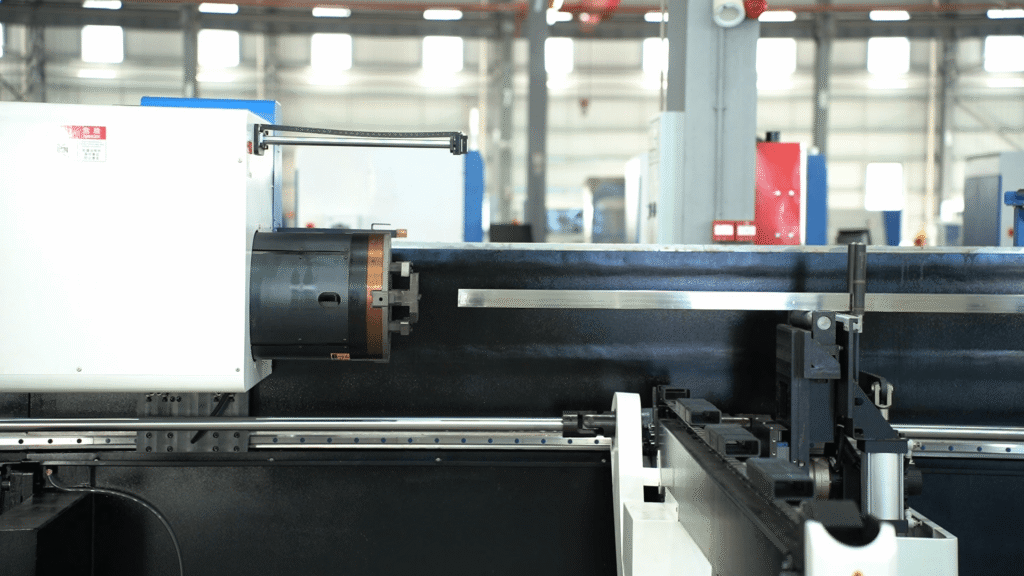

Core Engineering: How Baison’s V36 Redefines Heavy Tube Cutting with Dual Chucks
Tailored specifically for heavy-duty tube processing, Baison’s V36 series dual-chuck side-mounted fiber laser tube cutters (available in V36, V36N, and V36T models supporting loading lengths from 6.5m to 12.5m) shatter the industry myth that heavy pipes require multi-chuck systems. Its engineering advantages span four dimensions:
1. Over-Travel Cutting Technology: Minimizing Tailings to 160mm
The V36 utilizes an advanced dual-chuck with over-travel cutting structure combined with an automatic receding unloading rack. Compared to traditional equipment with 300mm+ waste, the V36 strictly controls tailings to ≥160mm, boosting material utilization by over 20% and saving valuable material on every single pipe.

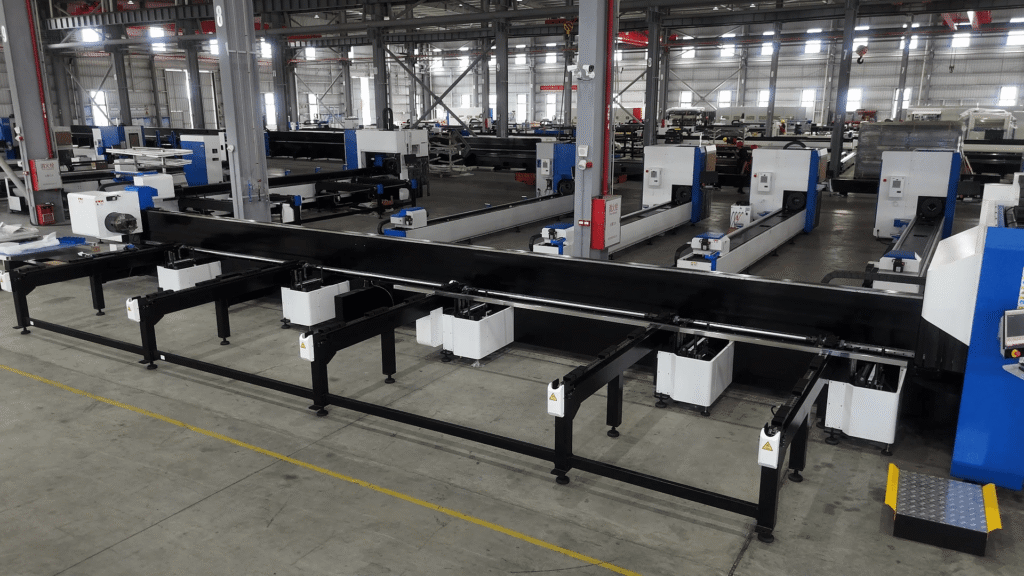

2. High-Strength Clamping & Servo-Following Supports: Eliminating Tube Whip
To combat the severe whipping and vibration typical of 6–12m heavy tubes during high-speed rotation and cutting, the V36T comes standard with 5 sets of high-strength loading clamps and servo-following support units, paired with automatic tube measuring sensors. Supporting a maximum single-tube load of 1,000kg, and handling round tubes Φ20–360mm and square tubes 20–350mm (up to 360x360mm for R > R15), it ensures rock-solid stability during heavy-duty machining.
3. FSCUT Bus Control & Intelligent Smart-Centering

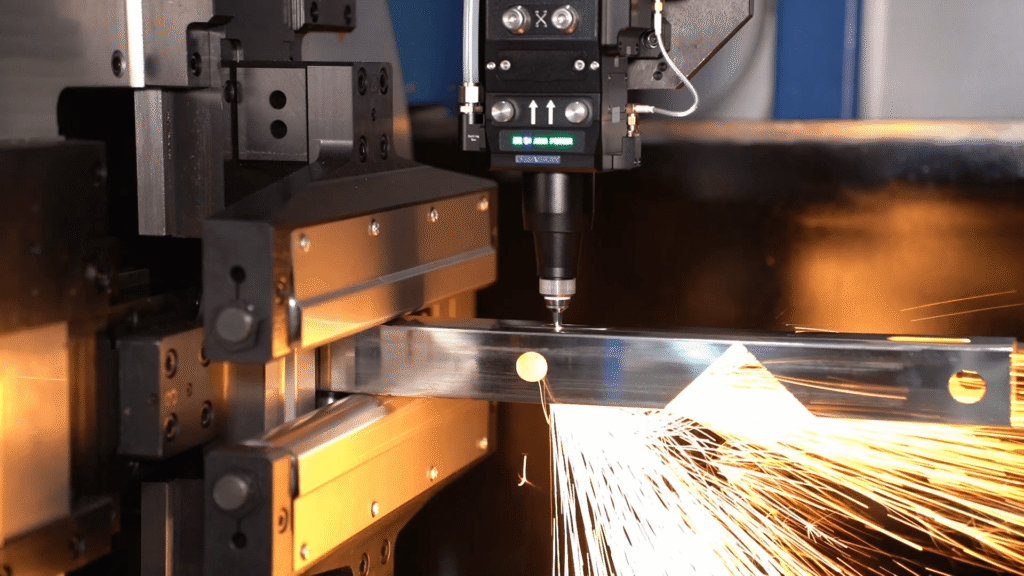

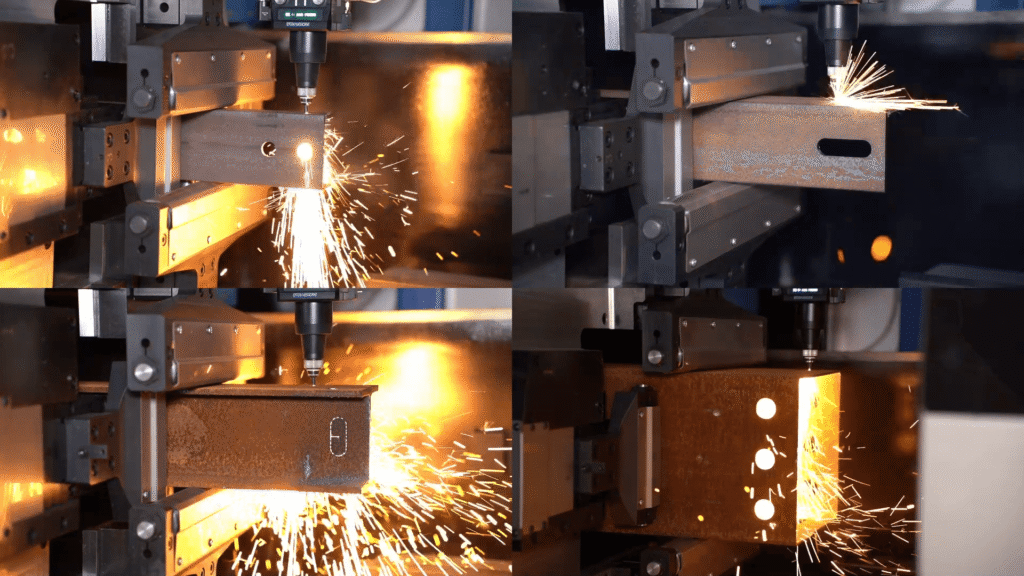

Powered by a real-time FSCUT bus CNC control system, the V36 supports automatic centering during processing, dynamically compensating for deviations between the tube center and chuck rotation axis. To tackle complex corner-cutting challenges, Baison integrates a specialized corner-cutting process, dynamically regulating gas pressure, peak power, and duty cycle for cleaner bevels and flawless profiles.
4. In-House Welded Bed with Dual Thermal Aging Cycles
Built upon Baison’s proprietary heavy-duty welded bed, the structure undergoes rigorous vibration aging, high-temperature annealing in a 12-meter 650°C furnace, sandblasting, rough machining, and precision finishing.
Guide rail mounting surfaces are milled in a single pass by a large-scale gantry milling center, yielding exceptional rigidity capable of withstanding 0.6G maximum acceleration and 60 rpm maximum chuck rotation speed for decades of sustained precision.
Curious whether a dual-chuck or multi-chuck setup best optimizes your specific tube profile and workshop output? [Contact our application engineers today for a custom technical consultation and material utilization audit.]
Investment ROI: 20%–30% Lower Initial Cost with Transparent Operating Expenses
In today’s highly competitive manufacturing climate, equipment economics matter more than ever. The comparison below systematically contrasts traditional setups against the Baison V36 series across initial investment, labor reduction, and hourly operating costs for a 6,000W model:
| Economic Dimension | Traditional 3/4-Chuck Heavy Machine | Baison V36 Dual-Chuck Heavy-Duty Cutter |
| Initial Capital Investment | Redundant structural complexity drives up upfront cost, extending ROI payback periods. | High-stability dualchuck design preserves core capability while directly cutting total investment by 20%–30%. |
| Automation & Labor Reduction | Heavy reliance on manual loading/unloading with safety hazards. | Standardized with chain-driven rolling semi-automatic loading racks and 4m following unloader, supporting 1000kg max load to slash labor dependency. |
| Hourly Operating Cost (6,000W Model) | High power consumption and elevated maintenance/consumable expenses. | • Air Cutting: ~$61.18/hr (~80.9KW total power, 60.68KW/hr power + $0.5/hr consumables) • Oxy/Nitrogen Cutting: ~$66.68 to $71.38/hr (Transparent, controllable utility standards) |
Industry Validation: Proven Performance from Elevator Rails to Heavy Steel Structures
As a purpose-built solution for heavy pipe processing, the V36 series’ value is proven across multiple heavy industry sectors:
| Industry Sector | Typical Processing Requirements | Production Improvements Delivered by V36 |
| Elevator Manufacturing | 6m+ thick-walled square tubes, channel steel, angles, and rail brackets. | Solves slow overhead crane loading and excessive tailings (300mm+), meeting high-precision, high-volume welding standards for brands like Melion Elevator, Shenhe Elevator, IFE Elevators, and Ningbo Hongda. |
| Heavy Steel Structures & Bridges | Bridge components, industrial framing, and large architectural support pipes. | Enables high-speed, precise automated blanking for large-profile structural steel (channels up to 36C#, I-beams up to 36C#, H-beams up to 350x350mm). |
| Engineering Machinery & Wind Power | 6–9m main booms, chassis support tubes, and wind turbine base cylinders. | Overcomes heavy tube centrifugal whipping, boosting assembly accuracy and seamlessly interfacing with downstream robotic welding lines. |
Frequently Asked Questions (FAQs)
Q1: Will a 12-meter heavy tube sag or whip in the middle when using a dual-chuck setup?
A: No. The V36T is specifically engineered with 5 sets of high-strength loading clamps and servo-following support units. Throughout feeding and rotary cutting, these supports dynamically track and cradle the workpiece, effectively eliminating sag from self-weight and centrifugal vibration during high-speed rotation.
Q2: What power ratings and materials does the V36 series support?
A: Power ranges from 3,000W to 12,000W paired with Raycus or Maxphotonics fiber lasers. Materials include carbon steel, stainless steel, and aluminum alloys. For carbon/stainless steel, batch processing thickness ranges from 1–16mm (with an 18mm absolute limit), fully satisfying heavy industrial fabrication demands.
Q3: How does Baison handle machine installation and operator training for heavy equipment?
A: Baison dispatches professional engineers for on-site installation and calibration. Clients can send personnel to our training center for 2–5 days of intensive instruction (covering operation, maintenance, laser safety, process tuning, and troubleshooting), followed by practical on-site testing to ensure workforce proficiency.
This is backed by a global network of 200+ service stations and 150+ after-sales engineers, guaranteeing 2-hour response.
Q4: Can machine configurations be customized for limited workshop floor space?
A: Yes. The V36 series offers three distinct models: V36 (6.5m loader / 3m unloader), V36N (9.5m loader / 4m unloader), and V36T (12.5m loader / 4m unloader), allowing plants to flexibly configure equipment based on facility dimensions and standard raw stock lengths.
Q5: How can we request a tailored V36 quotation and technical proposal?
A: You can reach out directly via our official website or contact Baison Laser. By sharing your standard tube drawings, wall thickness specifications, and daily output targets, our engineering team will provide a free, customized line configuration and ROI analysis report.
Conclusion & Next Steps
Processing 6–12m heavy tubes no longer requires blindly overpaying for 3-chuck systems. Baison’s V36 dual-chuck heavy-duty tube cutter leverages an agile, highly intelligent dual-chuck architecture to maximize your equipment budget—slashing upfront capital expenditure while locking in micrometer precision and maximum uptime through advanced over-travel cutting and servo-following stability.
If your workshop is currently held back by low heavy-tube cutting efficiency, excessive material waste, or high labor overhead, [send us your tube specifications, wall thicknesses, and daily production goals today. Let our experts deliver a custom V36 ROI evaluation and factory layout plan so your next equipment upgrade is entirely data-driven and risk-free.]
