TL;DR Executive Summary
The manufacturing precision of HVAC ducts, blower housings, and electrical enclosures directly dictates a project’s air tightness and installation efficiency. Many global HVAC manufacturers struggle with dross accumulation on galvanized and stainless steel thin sheets, tolerance stacking from disjointed multi-vendor equipment, and mismatched assembly gaps.
Engineered specifically for 1–3 mm thin-sheet HVAC applications, the Baison EC3 entry-level fiber laser cutting machine seamlessly integrates with JES/JB series CNC press brakes for digitalized, end-to-end production—while also offering full compatibility with third-party legacy bending machines. Utilizing a dry compressed air cutting mode slashes operating expenses (with gas costs nearing $0/h), delivering a high-ROI, future-proof smart manufacturing upgrade for overseas HVAC facilities.
Why High-Precision Laser Cutting is Critical for Modern HVAC Fabrication
Traditional HVAC sheet metal processing heavily relies on plasma cutters or mechanical shearing, which suffer from large heat-affected zones, excessive burrs, and labor-intensive secondary deburring. As modern HVAC projects demand stricter air tightness, enhanced acoustic insulation, and lightweight structural frameworks, automated fiber laser cutting technology has become the absolute industry standard.

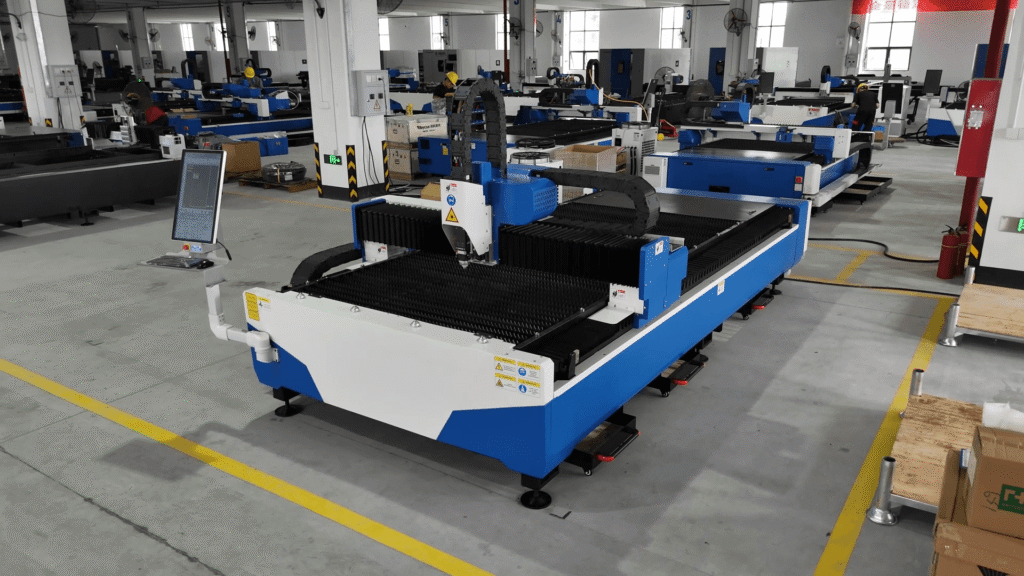

Tailored specifically for thin-metal fabrication, the Baison EC3 single-table fiber laser cutting machine delivers core manufacturing advantages tailored for HVAC production:
- Superior Dynamic Response and Cutting Velocity: The EC3 gantry beam is built from premium aerospace-grade aluminum via an integrated extrusion molding process, ensuring ultra-light weight, high rigidity, and low internal stress. This allows for high-speed dynamic tracking when executing complex hole patterns, curved duct geometries, and dense louver slots.
- Exceptional Machining Accuracy: Boasting an X/Y-axis positioning accuracy of ±0.05 mm/m and a repeatability of ±0.03 mm, the EC3 strictly controls enclosure side panels, flange components, and irregular duct developments within tight tolerance margins, eliminating downstream alignment errors during assembly.
- Intelligent Bus-Control Integration: Driven by a high-performance real-time bus control system, it supports Frog-Leap motion, Fly Cutting, and automatic graphic optimization—drastically reducing non-cutting air time and maximizing thin-sheet processing throughput.
Beyond sheer cutting speed and accuracy, minimizing secondary overhead is crucial. You can explore a deeper financial breakdown in our dedicated case study on how to Cut Hidden Manufacturing Costs With Baison EC3 Fiber Laser Cutter.
Are you losing profit margins to out-of-tolerance sheet metal parts and delayed assembly times? Contact our technical team today to discover how upgrading your blanking process can instantly optimize your shop floor output.

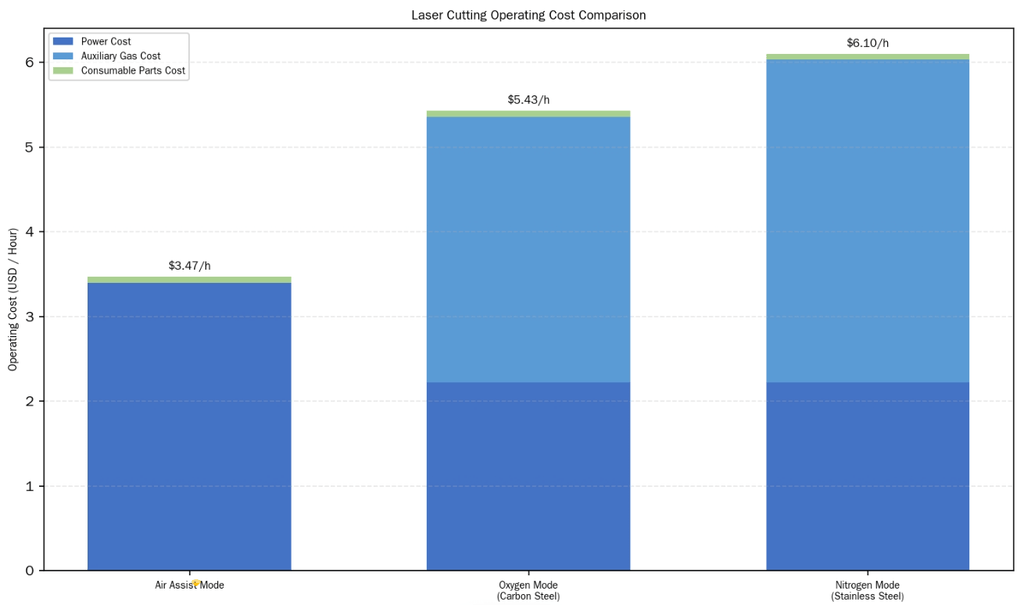

Operating Cost Breakdown: Economic Analysis of Air-Assist Cutting for Thin Sheets
For HVAC manufacturers processing 1–3 mm galvanized steel, carbon steel, and stainless steel, auxiliary gas and electricity expenses are core Key Performance Indicators (KPIs) when evaluating Return on Investment (ROI).
⚠️ Operational Disclaimer: The following estimates reflect typical running metrics for the EC3 processing 1–3 mm thin sheets (calculated in USD based on an exchange rate of 1 USD ≈ 7.0 RMB). Actual utility costs depend on local electricity tariffs, compressor efficiencies, and material specifications, serving here as a baseline comparison for procurement.
Process Tip: While dry compressed air is exceptionally cost-effective for cutting galvanized and carbon steel, thicker stainless steel applications may exhibit minor oxidation layers. For high-end architectural stainless steel requiring strict corrosion resistance and visual perfection, pure nitrogen () cutting is recommended.
| Performance Metric | Air Assist Mode | Oxygen Mode (O2O_2O2 – Carbon Steel) | Nitrogen Mode (N2N_2N2 – Stainless Steel) |
| Estimated Total Power | Approx. 31.7 kW (Including high-efficiency air compressor & dust collector) | Approx. 20.7 kW | Approx. 20.7 kW |
| Auxiliary Gas Cost | Near $0/h (Utilizes factory compressed air; zero bottled gas consumption) | Approx. $3.14/h (22 RMB/h) | Approx. $3.81/h (26.7 RMB/h) |
| Consumable Parts Cost | Approx. $0.07/h (protective windows, nozzles, etc.) | Approx. $0.07/h | Approx. $0.07/h |
| Total Operating Cost | Approx. $3.47/h (24.28 RMB/h) | Approx. $5.43/h (38.03 RMB/h) | Approx. $6.10/h (42.73 RMB/h) |
Commercial Insight: When mass-producing galvanized HVAC ducts and equipment enclosures, shifting to dried, purified compressed air eliminates expensive industrial gas cylinders entirely while maintaining high feed rates. Compared to pure nitrogen processing, overall operating overhead is reduced by over 30%, delivering undeniable bottom-line savings.
From Blanking to Forming: Achieving Seamless Integration with CNC Press Brakes

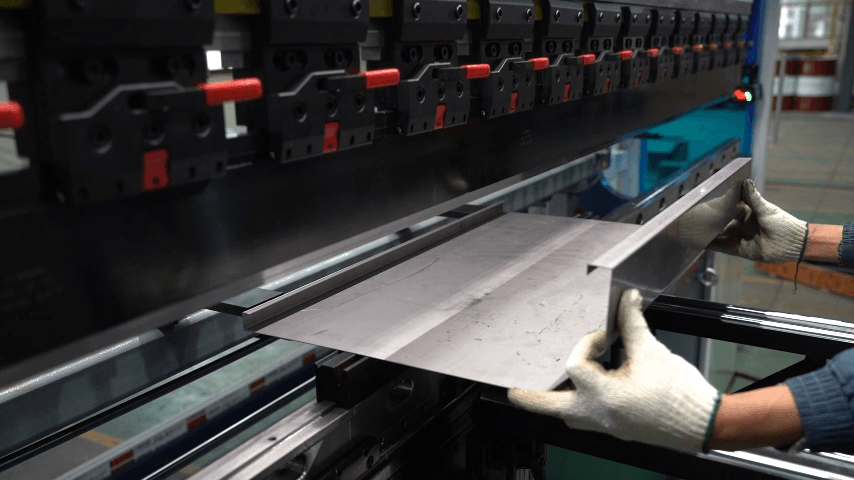

In HVAC cabinet and duct assembly, precision blanking is only the first phase; press brake bending determines the final structural rigidity and air-tight sealing integrity. Disjointed machinery sourced from multiple vendors often introduces software language mismatches and reference datums discrepancies, causing acute angular and dimensional variations.

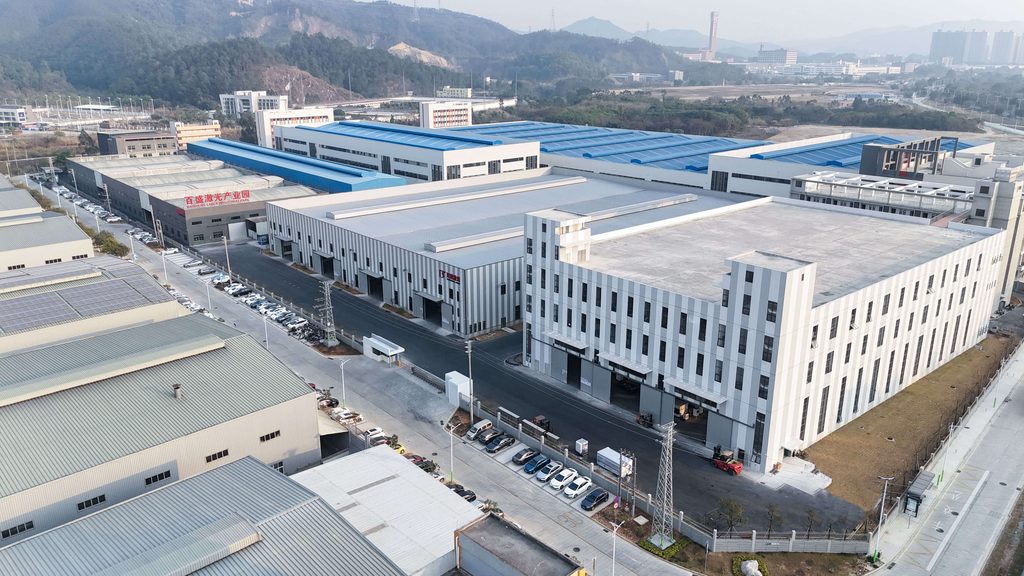

Backed by a sprawling 100,000-square-meter intelligent laser industrial park and a robust vertical manufacturing ecosystem, Baison Laser not only supplies advanced EC3 cutters but also offers a complete portfolio of high-performance CNC press brakes. Furthermore, the EC3 natively supports integration with third-party legacy press brakes already active on your shop floor, requiring only an upfront calibration of drawing formats and compensation parameters.
- JES Series Servo-Hydraulic Hybrid Press Brakes: Innovatively combining pure electric precision with hydraulic power, dual servo motors directly control pump displacement for on-demand oil supply. Power draw during idle stages is virtually non-existent, yielding over 60% energy savings compared to traditional hydraulic machines while lowering heat generation and oil volume requirements for a clean, high-precision environment.
- JB Series Electro-Hydraulic CNC Press Brakes: Built with a high-rigidity heavy-duty frame integrated with CNC mechanical crowning systems or hydraulic camber compensation. Utilizing Finite Element Analysis (FEM) to compute and correct slider deflection in real time, these machines successfully eradicate the classic “canoe effect”—where long HVAC ducts bow or twist unevenly along the bend line.
- Mainstream Industrial Control Ecosystems: Press brakes can be equipped with world-class CNC controllers such as Delem or Cybelec, providing intuitive 2D graphical programming and simulation to reduce reliance on highly specialized manual operators.

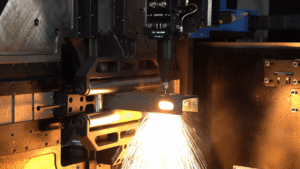

Furthermore, if your HVAC projects frequently involve round spiral ducts or structural pipe components alongside flat sheets, consider pairing your flat cutting line with specialized tube technology as detailed in our guide on Transforming Tube Fabrication Margins With V36E Triple-Chuck Solutions.
Curious how much efficiency your current bending workflow is losing due to trial-and-error adjustments? Speak with our application engineers today for a custom cycle-time analysis.
Solution Comparison: Piecemeal Procurement vs. Baison’s Turnkey Sheet Metal Line
To assist plant directors in calculating total capital expenditure value, we have contrasted the traditional fragmented procurement model against Baison’s turnkey manufacturing solution:
| Evaluation Dimension | Piecemeal Procurement (Multi-Vendor Setup) | Baison Turnkey Solution (EC3 Cutter + Smart Press Brake) |
| System Synergy & Compatibility | Incompatible data formats between cutting and bending demand manual test bends, driving up scrap rates. | Unified digital workflow; CAD files import directly with kerf and bending allowances mapped automatically. |
| Footprint & Layout | Open electrical panels collect conductive dust; scattered machinery layouts complicate material handling. | EC3 features a rear-mounted dust-isolated cabinet with climate-controlled AC; compact line layout with 3-sided roller tables. |
| After-Sales Accountability | Finger-pointing during defects (laser supplier blames material, press brake supplier blames blanking). | Single-Source Accountability: Backed globally by Baison’s rapid-response support and field engineering network. |
| Component Standardization | Proprietary or hard-to-source parts lead to extended downtime during replacements. | Built with globally standardized industrial brands (Schneider electrics, SMC pneumatics, etc.) for local sourcing ease. |
| Brand Heritage & Trust | Generic assembly houses lack R&D depth, resulting in fluctuating operational stability. | 20+ years of industrial legacy, 300+ patents, trusted across 60+ countries by 15,000+ active clients. |
Commercial Insight: Purchasing a harmonized production line slashes administrative overhead associated with multi-vendor coordination. More importantly, an unbroken digital thread guarantees exact part consistency across high-volume batches, empowering your plant to secure orders and hit tight shipping deadlines.
HVAC Production Line Selection Checklist: Avoiding Hidden Traps
If you are planning to upgrade or expand your HVAC sheet metal processing capacity, verify these four essential criteria before signing any equipment contract:
- [ ] Electrical Enclosure Dust Protection: Thin-sheet air cutting generates significant micro-metallic dust. Always insist on a rear-isolated electrical cabinet equipped with an industrial air conditioner to prevent circuit board failures and unexpected factory shutdowns.
- [ ] Press Brake Crowning Mechanism: When processing long HVAC duct housings exceeding 3 meters, the press brake must feature active CNC mechanical crowning or hydraulic camber compensation rather than relying on manual shim adjustments.
- [ ] Gantry Beam Material Dynamics: Prioritize aerospace-grade extruded aluminum beams; their lightweight, high-stiffness profile is vital for maintaining long-term positioning tolerances under high accelerations.
- [ ] Global Service and Spares Backing: Overseas facilities are highly sensitive to downtime. Confirm that your supplier maintains a responsive international service network, standardized English training programs, and comprehensive local consumable stocks.
Frequently Asked Questions (FAQ)

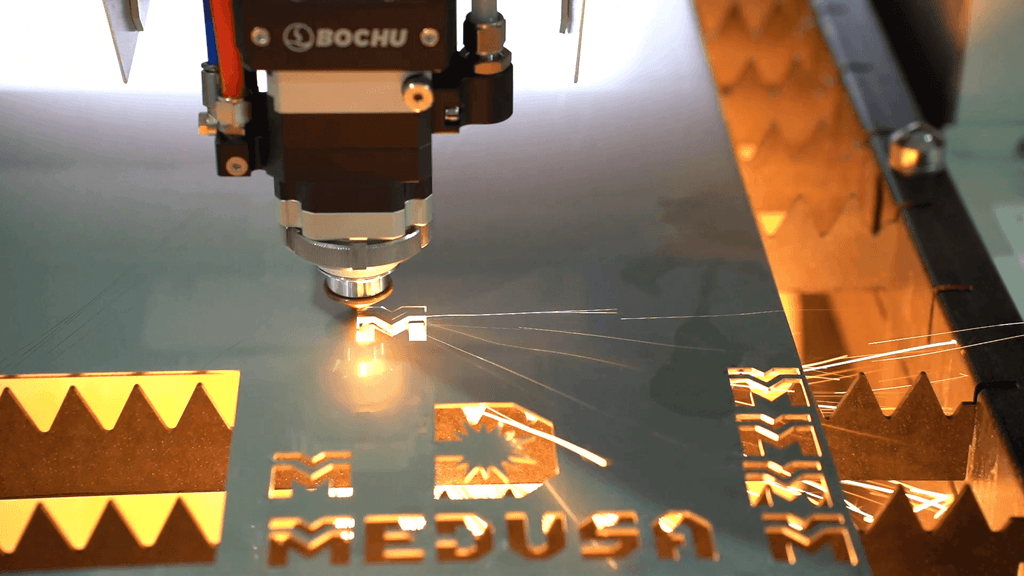

- Q1: How does the EC3 fiber laser cutter prevent bottom-edge burrs when cutting thin galvanized steel?
- A: Edge quality depends heavily on galvanized coating integrity and auxiliary gas purity. The EC3 features standard high-precision proportional valves and intelligent gas-pressure sensing. When paired with dried, filtered compressed air or high-purity assist gases and optimized focal-position algorithms, bottom-edge burrs are minimized, yielding clean, ready-to-assemble edges.
- Q2: Why is a Baison integrated “Cutting + Bending” package advantageous for HVAC builders?
- A: HVAC applications rely on thin-wall enclosures and custom duct transitions where joint tolerances are stringent. Our turnkey package aligns EC3 blanking with JES/JB series bending under a unified digital standard, eliminating cumulative error chains. If your facility already operates legacy press brakes, the EC3 integrates smoothly via customized drawing interface calibrations.
- Q3: Is material loading practical with the EC3 single-table design in tight shop spaces?
- A: Absolutely. The EC3 features an open architecture outfitted with integrated roller mechanisms across three sides of the working platform, greatly reducing manual lifting strain while optimizing shop floor footprint.
- Q4: What does the installation and operator training protocol look like for overseas buyers?
- A: Baison facilitates pre-shipment virtual factory acceptance tests (FAT) and provides detailed facility layout schematics. Upon arrival, certified senior engineers can be deployed on-site to handle complete mechanical alignment, electrical commissioning, and multi-day training covering safety, CAD/CAM nesting, and maintenance routines.
- To give overseas buyers complete peace of mind regarding long-term operational continuity, we invite you to learn more about our engineering response commitments and spare parts logistics in our feature on Baison Laser’s Global Support Network.
- Q5: How dependable are core components like the laser source and CNC control system?
- A: We utilize industry-proven components, including premier fiber laser sources (Raycus/Max), high-performance cutting heads (BOCI), and industrial bus-control systems (FSCUT). Each machine undergoes stringent quality verification tests and utilizes globally available electrical components to guarantee long-term operational uptime.
Get Your Custom Workshop Layout & Free Sample Testing
Amidst intensifying global competition within the HVAC market, legacy punching lines and mismatched multi-brand setups can no longer satisfy high-quality delivery windows. Implementing the Baison EC3 economic laser cutting machine alongside precision CNC press brakes will establish a high-throughput, low-rework manufacturing benchmark in your facility.
Want to evaluate how well our technology matches your specific material gauges and production output targets? Get in touch with Baison Laser’s international marketing team right now to secure your complimentary workshop layout planning, free sample test cuts, and tailored equipment quotation!
