In high-value-added industrial sectors such as rail transit, new energy vehicles (NEVs), and heavy machinery manufacturing, surface treatment (rust removal, paint stripping, degreasing) of medium-to-large components is always the critical step determining subsequent welding and coating quality. Traditional sandblasting, shot blasting, and chemical cleaning not only face severe environmental compliance pressures but also suffer from heavy consumable wear, slow cycle times incompatible with automated lines, and a fatal risk of damaging precision substrates (causing mechanical deformation or chemical alterations), drastically squeezing manufacturers’ profit margins.

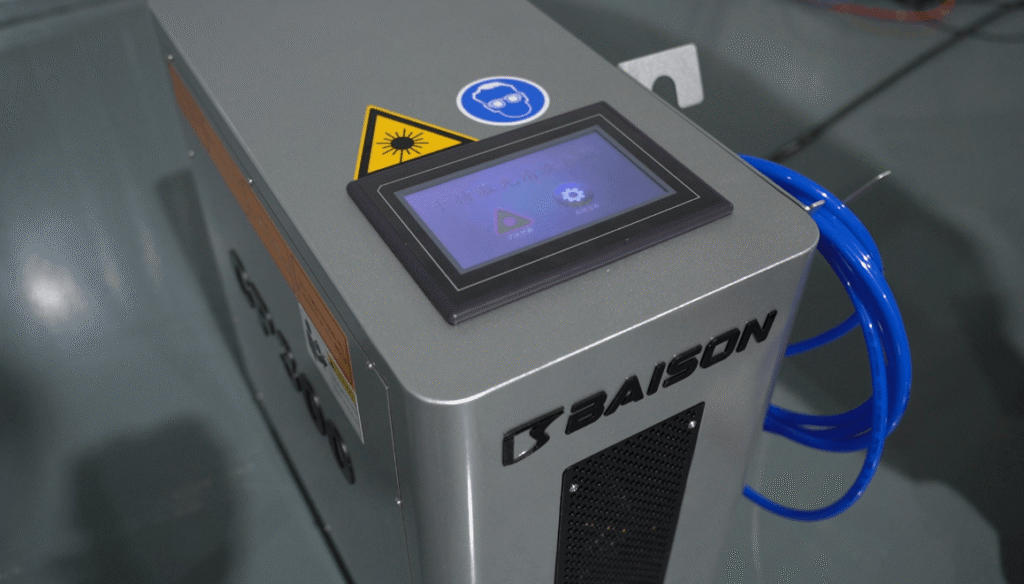

As a leading global supplier of intelligent laser equipment solutions, Foshan Baison Laser Technology Co., Ltd. (BAISON) has leveraged its deep industry expertise to address high-tact, high-cleanliness, non-contact industrial demands by launching the game-changing CP500 Cabinet Pulse Laser Cleaning Machine. Equipped with a PLC-integrated unmanned central control for nano-precision, fully automated, and visual cleaning, this model has become the premier choice for full-scale upgrade across core supply chains like NEVs, rail transit, and precision mold maintenance.
Core Advantages: Why BAISON CP500 Replaces Sandblasting & Shot Blasting
1. High-Power Pulse Output for 50–300μm Thick Coatings
Traditional methods require repetitive cycles and yield extremely low efficiency when facing thick coatings or heavy grease. BAISON CP500 utilizes an integrated system design where high-power burst pulse lasers instantly vaporize or strip stubborn contaminants, effortlessly peeling away ultra-thick paint or high-temperature oxide layers up to 1000–1500μm. Heavy corrosion surface cleaning that once took hours is now completed efficiently in just over ten minutes, boosting industrial productivity by over 80% compared to traditional mechanical processing.
2. Nano-Scale Non-Destructive Cleaning (0.5–1μm Minimal Substrate Damage)
Precision machinery and high-value-added products are highly vulnerable to mechanical wear and deformation caused by thermal effects. BAISON CP500’s pulse laser delivers massive energy with absolute precision control, offering the definitive advantages of non-contact, non-abrasive, and thermal-free processing. It limits substrate damage to a mere 0.5–1μm, completely preserving the physical and chemical properties of the base metal to perfectly solve surface preparation challenges for sensitive materials like aluminum and titanium alloys.
3.Built-in Extraction Air Knife: Zero Consumables & 30% Cost Reduction
Under global carbon-neutrality and green manufacturing benchmarks, purchasing steel grits, silica sands, chemical solvents, and handling hazardous waste impose heavy financial burdens on enterprises. The CP500 cabinet cleaner features a built-in extraction air knife, requiring zero abrasive consumables and generating no secondary toxic chemical pollution, leaving the workshop dust-free and quiet. Manufacturers only need to plug in for 24/7 continuous operation, slashing total operational costs by over 30% compared to legacy processes.
4. PLC-Integrated Control for 100,000-Hour Automated Cleaning
Engineered for smart factory integration, the CP500 discards cumbersome manual standalone operations. Its PLC-integrated unmanned central control system seamlessly interfaces with flexible robotic arms and automated conveyors, making the entire cleaning cycle fully visible, controllable, and digitally traceable. Operating with exceptional stability, the core components boast a lifespan of up to 100,000 hours, completely wiping out hidden downtime costs from frequent maintenance.
Deep Comparison: Legacy Methods vs. BAISON CP500 Pulse Laser Cleaning
To provide buyers and business owners with an intuitive, data-driven Asset Return on Investment (ROI) evaluation, the core multi-dimensional matrix comparing legacy industrial cleaning against BAISON CP500 pulse laser cleaning is detailed below:
| Comparison Metric | Legacy Methods (Sandblasting/Shot Blasting/Chemical) | BAISON CP500 Cabinet Pulse Laser Cleaner |
| Substrate Damage & Surface Profile | Prone to mechanical wear, undercuts, warping, or chemical residues; high damage. | Non-contact, zero wear; 0.5–1μm minimal damage; completely preserves natural texture and physical properties. |
| Precision & Cleanliness Level | Uneven results; fails in narrow gaps/micropores; leaves secondary residues. | Nano-scale control; reaches elite Sa3.0 cleanliness standard; flawless deep crevice stripping. |
| Environmental Audit & Shop Floor | Heavy airborne dust, deafening noise, hazardous liquid waste; hard to pass audits. | Eco-friendly; equipped with extraction air knife; zero pollution/hazardous waste; clean and quiet. |
| Cycle Time & Efficiency Ratio | Labor-intensive, fragmented stages; incompatible with high-tact automated lines. | Blazing fast speed; boosts productivity by over 80%; seamlessly matches automated conveyor speeds. |
| Long-term Operating Consumables | Requires continuous purchasing of steel grits, quartz sands, or acids; high overhead. | Completely zero consumables; only consumes standard protective lenses and basic electricity. |
| Lifespan & Maintenance | Rapid mechanical wear requires frequent repairs, triggering high downtime costs. | Ultra-stable system; up to 100,000-hour operational lifespan; supports 24/7 continuous runs. |
Industrial Applications & Laser Cleaning Case Studies
Driven by BAISON’s advanced technology and precise pulse laser control, the CP500 delivers high-quality pre- and post-weld surface treatments for ferrous and non-ferrous metals, while excelling in cross-industry composite cleaning:

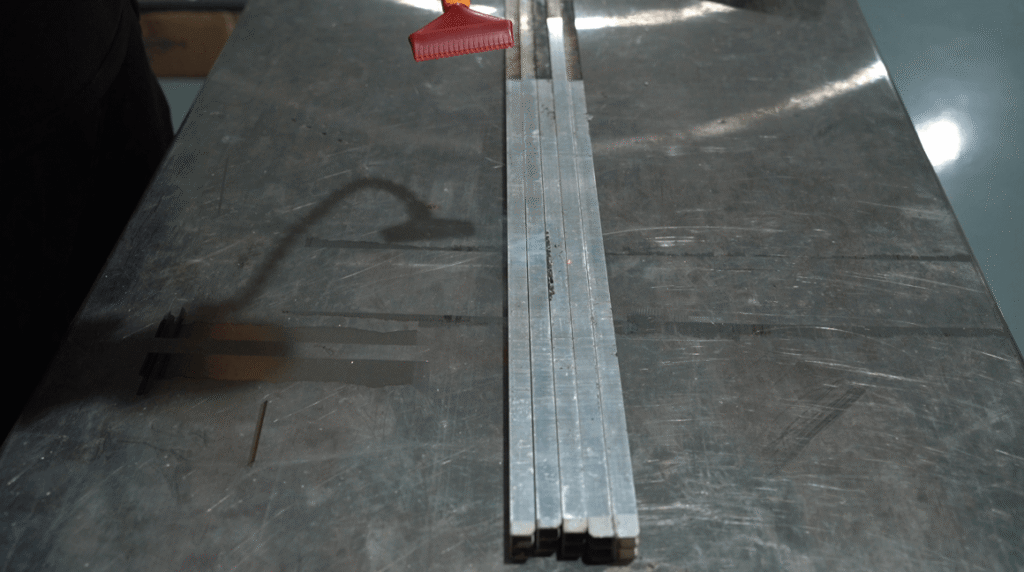

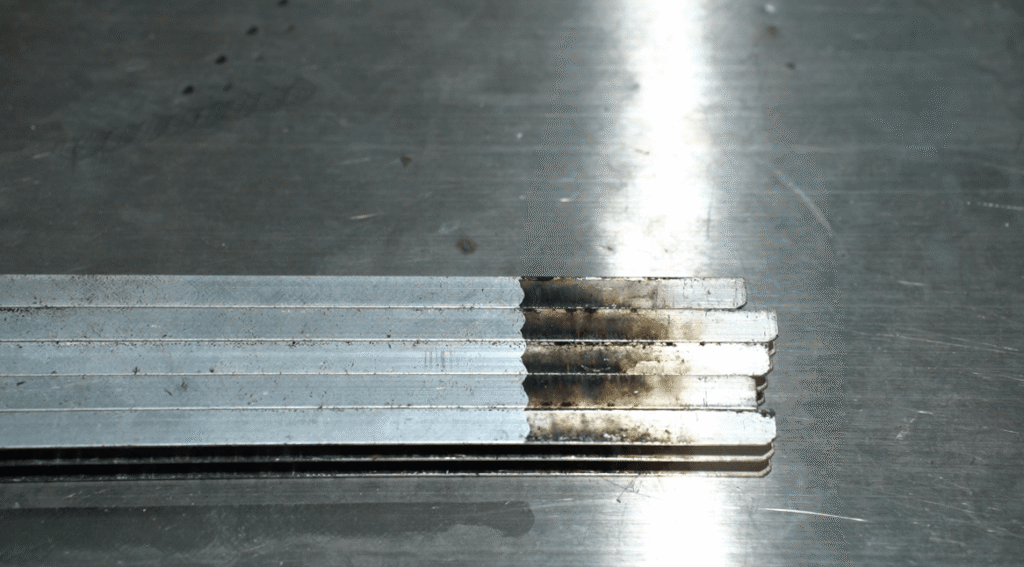

- NEV Motor Hairpin Laser Stripping: Replaces legacy mechanical milling; rapidly removes insulation layers with zero residue, boosting productivity by 80% and ensuring flawless subsequent welding.
- Friction Materials & Brake Pad Cleaning: Replaces sandblasting and steel brushing; supports an 80cm ultra-wide simultaneous scan for multiple brake pads, railway brake shoes, and ceramic seals with zero mechanical force or thermal damage.
- Automotive Body Pre-Weld Cleaning: Automates oxide and grease removal from aluminum and steel sheets; drastically reduces post-weld soot and porosity while doubling joint strength and elongation.
- Premium EV Battery Cleaning & Stripping: Applied to core areas of prismatic and cylindrical batteries (cap, poles, injection ports); pioneers “cleaning-welding integration” to meet strict high-tact, high-cleanliness lithium battery standards.
Case Study: Green Smart Transformation & ROI Leap for a Major Rail Transit Supplier
Background & Pain Points
A rail transit manufacturing and maintenance supplier in South China specializes in high-speed rail and urban transit carriage layer paint stripping and pre-weld aluminum/titanium alloy cleaning. Previously, legacy chemical pickling and steel brush grinding caused micro-scratches and localized warping on high-grade thin alloy sheets. To pass strict national environmental audits, the factory had to employ 3 extra technicians just to handle hazardous waste and manual rework. Compounded by heavy consumable costs and potential environmental fines, the overall production profit margin dropped below 10%.
BAISON Solution
Following an on-site evaluation by BAISON engineers, the factory integrated the BAISON CP500 (500W Water-Cooled Cabinet Pulse Laser Cleaner) paired with a 6-axis robotic arm into its automated central production line.
Transformation Results & Hardcore ROI Data
- Cleaning Efficiency Doubled: Operating at rapid pulse tacks that perfectly match conveyor speeds, the CP500 shortened paint stripping times for carriages and components by 65%, drastically compressing project cycles.
- Zero Rework & Zero Damage: Restricting substrate damage to a mere 0.5–1μm, alloy surfaces are perfectly cleaned in a single pass, crashing post-weld defect and porosity rates straight to 0%.
- Stunning ROI Leap: Under fully unmanned digital central control, all former grinding, acid pickling, and hazardous waste disposal positions were completely eliminated. By eliminating chemical consumables and slashing labor overhead alone, the factory saves 48,000 RMB in cash flow every month, completely recovering the total purchase and installation costs of the laser system in just the 5th month of operation!
Case Study II: Top NEV Motor Supplier Deploys CP500, Achieving Full ROI in 5 Months
Legacy Pain Points: Mechanical Damage & High Rework Costs
A Tier-1 NEV motor supplier in East China relied on traditional mechanical milling to strip insulation layers from flat copper hairpins, facing three industry bottlenecks:
- Substrate Damage: Rapid tool wear frequently gouged the copper wire, leading to severe post-weld soot and porosity.
- Efficiency Bottleneck: Slow mechanical cycle times failed to match high-tact automated assembly lines.
- Heavy Labor Costs: Required 3 specialized technicians on rotating shifts for manual grinding, rework, and QC, severely crushing profit margins.
BAISON Solution: CP500 4-Head Collaborative Hairpin Laser Stripping Station
BAISON customized a multi-axis flexible automated line driven by the CP500 (500W Pulse Laser Cleaner):
- 4-Head Synergy: Managed by a central PLC digital controller, four precision laser heads simultaneously strip all four sides of the square copper tip with zero blind spots.
- Integrated Cleaning & Extraction: High-burst pulse lasers instantly vaporize the high-performance insulation layer. An integrated extraction air knife immediately suctions away residues, maintaining a zero-dust, zero-pollution workshop.
Transformation Results: Hardcore ROI Data (5-Month Payback)
- Capacity Doubled: Stripping cycle times dropped to seconds, skyrocketing overall processing efficiency by over 80%.
- Zero-Damage Quality: Limits substrate damage to a mere 0.5–1μm; hits elite cleanliness standards to crash post-weld defect and porosity rates straight to 0%.
- 30% Overhead Cut: Completely eliminated mechanical cutters and chemical solvents; achieves 24/7 continuous runs with zero consumables and zero hazardous waste, consuming only basic electricity.
FAQs
Q1: Which industries is the BAISON CP500 best suited for?
A: It is purpose-built for high-value-added sectors, including rail transit layer paint stripping, NEV hairpin motor/battery stripping, precision mold online maintenance, and pre-weld surface treatment for heavy machinery.
Q2: Does the BAISON CP500 laser cleaning system support production line customization?
A: Yes. Powered by a PLC-integrated unmanned central control system, it perfectly adapts to 6-axis robotic arms, multi-head collaborative setups (such as 4-head simultaneous square stripping), and high-tact flexible automated assembly lines.
Q3: What is the most common mistake when choosing a pulse laser cleaning machine?
A: Choosing low-end continuous wave (CW) equipment solely for a lower price. The BAISON CP500 utilizes advanced pulse laser technology, limiting substrate damage to a mere 0.5–1μm, completely avoiding the mechanical warping and thermal damage caused by legacy or CW cleaning.
Q4: Compared to sandblasting, does the BAISON CP500 truly have zero hidden consumable costs?
A: Absolutely zero consumables. Equipped with an intelligent extraction air knife, it requires only basic electricity for 24/7 continuous operation, slashing total processing and operating overhead by over 30%.
Conclusion
In summary, the BAISON CP500 Cabinet Pulse Laser Cleaner is far more than a surface cleaning machine—it is an intelligent, digital platform designed to help modern manufacturers break through environmental audit bottlenecks, eliminate the money pit of consumables, and multiply profit margins. By delivering nano-scale non-destructive cleaning and eliminating 100% of secondary rework and chemical consumables, it rapidly transforms your production line into a core commercial advantage to secure high-value contracts in today’s demanding industrial market.
Ready to revolutionize your metal processing and component cleaning efficiency?
Contact Foshan Baison Laser Technology Co., Ltd. (BAISON) today. Our team of senior application engineers is ready to provide deep, customized technical consultations for flexible robotic integration, multi-stage high-efficiency extraction units, and your specific automated line requirements—complete with 100% free sample testing. Let’s step into a high-yield, zero-pollution era of smart industrial manufacturing together!
