For years, manufacturers in stainless steel furniture, kitchenware, cabinets, metal enclosures, handrails, and sheet metal fabrication have relied heavily on traditional TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. However, standard arc welding process presents critical operational bottlenecks:
- High reliance on expensive, skilled welders
- Slow welding speeds and severe thermal distortion
- Extensive post-weld grinding and polishing, consuming huge material costs
To help global metal fabricators overcome these challenges, Baison Laser introduces the WH Series WH1500 (1500W) Handheld Fiber Laser Welding Machine. Featuring a revolutionary 4-in-1 design (Weld, Cut, Surface Clean, and Weld-Seam Clean), the Baison WH1500 provides a high-ROI solution for modern metal fabrication workshops.
Addressing 3 Key Welding Pain Points: Maximum Cost Efficiency
1. Deskill the Operation: Zero-Threshold Onboarding
Traditional TIG welding requires years of specialized training, driving up labor costs and turnover risks. The Baison WH1500 completely deskills the welding operation:
- 10-15 Minute Onboarding: Operators can master straight-line and weave welding within minutes.
- Smart System Integration: Built-in process parameters and 25-language support.
- Labor Cost Savings: One WH1500 unit replaces up to 3 certified TIG welders, saving $15,000–$25,000 USD annually per workstation.
2. Zero Distortion & 80% Reduction in Grinding Costs
High heat input from conventional arc welding warps thin sheet metals (stainless steel, carbon steel, aluminum, galvanized sheets).

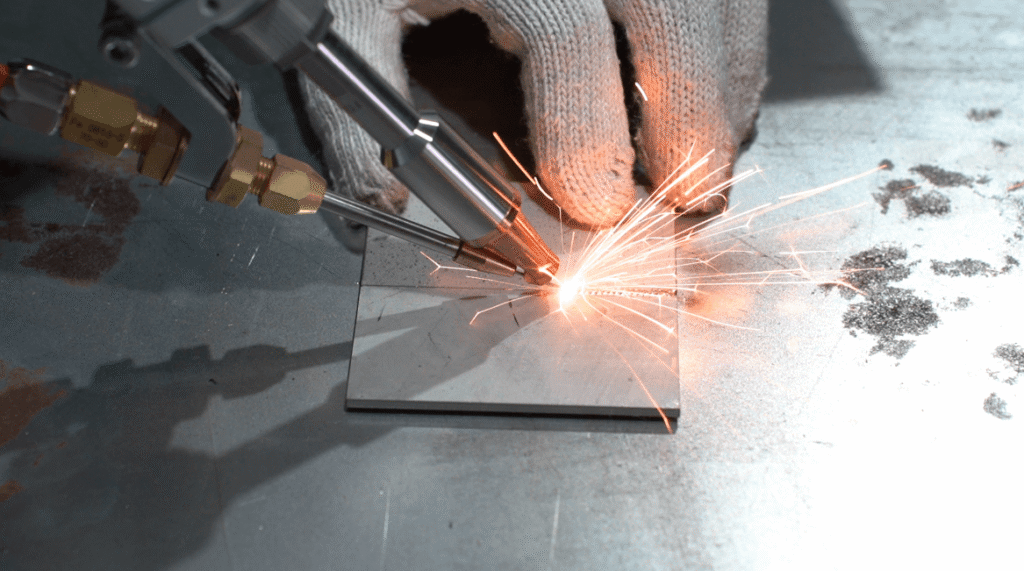

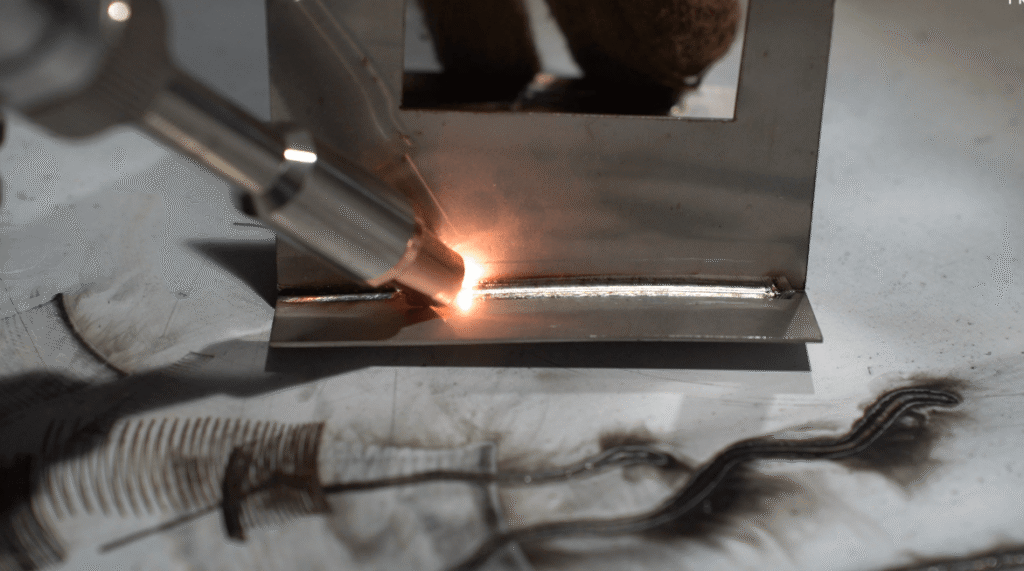

- 3–5x Faster Speed: The 1500W fiber laser concentrates energy precisely, achieving high penetration (up to 4mm) with minimal heat-affected zones.

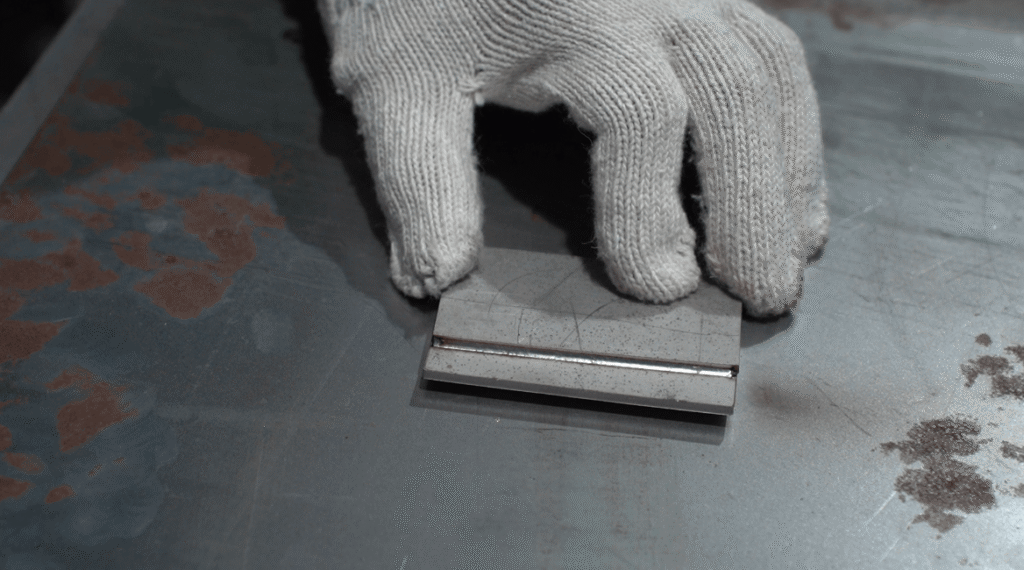

- Smooth Weld Seams: Produces clean, pore-free welds that eliminate post-process grinding.
- 80% Cost Reduction: Save up to 80% on grinding labor and abrasive disc consumables.
3. 4-in-1 Versatility: Save 80% Power & Reduce Operational Costs by 30%

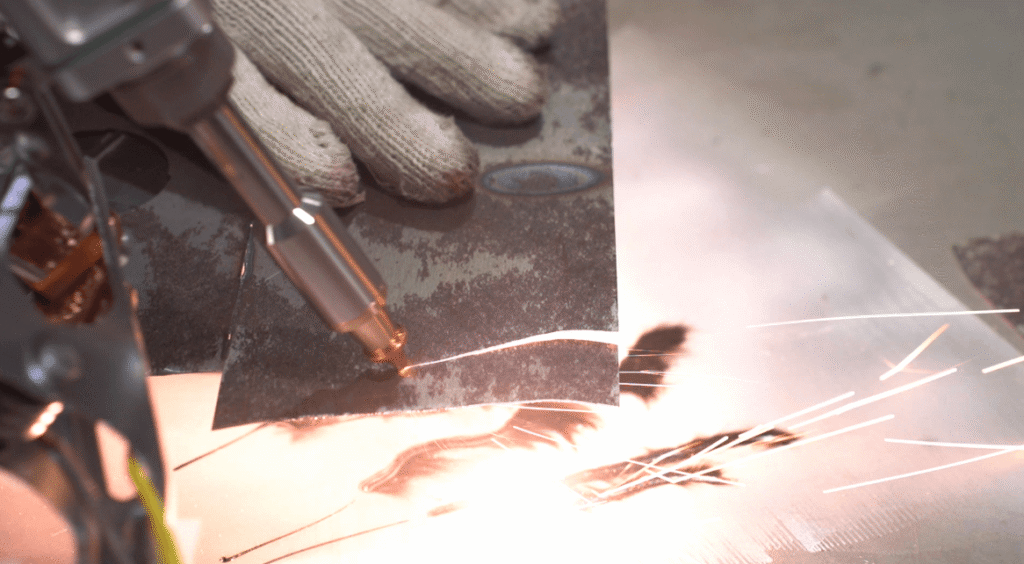

Equipped with the SUP23T 4-in-1 handheld laser head, the WH1500 instantly switches between welding, cutting, surface rust removal, and weld-bead cleaning.
- Power Efficiency: Cuts electrical consumption by 80%–90% compared to traditional arc welders.
- Wire Feeder Support: Includes the SUP-AMF-A automatic wire feeder supporting 0.8–1.6mm wire diameters for wider gap bridging.
High-Reliability Hardware System Overview
- Premium Fiber Laser Source (Raycus/Reci 1500W): High electro-optical efficiency, exceptional anti-reflection, and stable long-term beam quality.

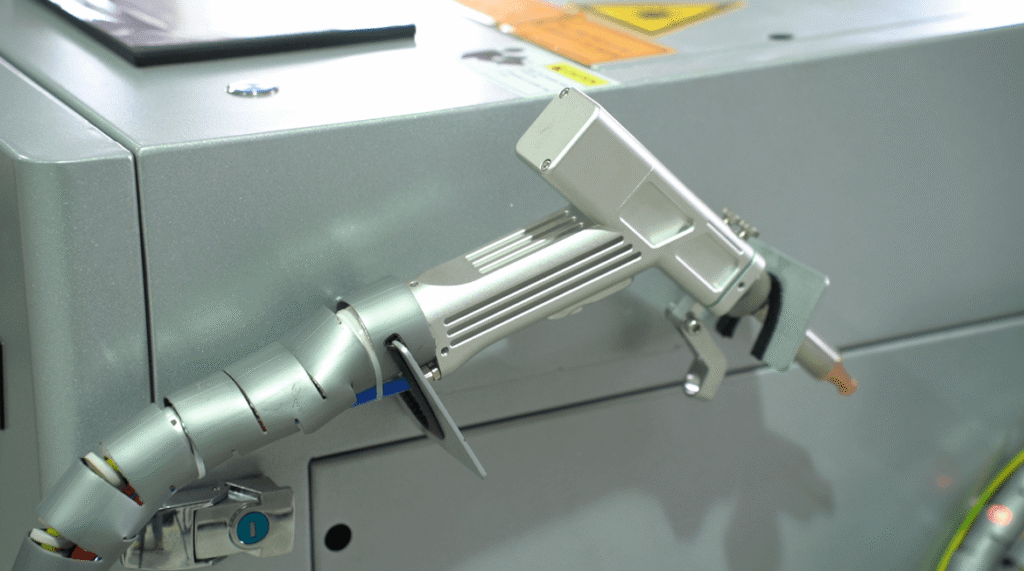

- Ergonomic SUP23T Gun Head: Weighs only 0.65 kg with built-in temperature indicators and triple safety sensors.
- SUP-LWS-D Smart Control System: Digital parameter control for wobble width (0–8mm) and wire feed speed.
- Industrial Safety Interlocks: Touch-safety sensors ensure the laser fires only upon direct contact with the workpiece.
Baison WH1500 vs. Traditional TIG Welding
| Comparison Dimension | Baison WH1500 Laser Welder | Traditional TIG Welding | Buyer ROI & Financial Impact |
| Welding Speed | 3–5x faster than TIG welding | Slow, labor-intensive | 300% output boost; 1 unit equals 3–4 TIG stations |
| Thermal Deformation | Ultra-low heat input; zero distortion | High heat input; severe warping | Zero scrap rate on thin metal sheets |
| Grinding Requirements | Smooth finish; minimal or no grinding | Rough seams; heavy grinding required | Saves 80%+ on grinding hours and abrasives |
| Operator Skill Level | Entry-level (15-min training) | Requires certified, high-wage welders | Replaces 3 skilled welders; huge salary savings |
| Energy Consumption | ~9.5 kW total power (Saves 80%–90%) | High power loss and heat dissipation | 30% reduction in overall processing costs |
Fast ROI in Months: Real Global Customer Revenue Cases
Case 1: Commercial Kitchen Equipment & Stainless Steel Furniture Manufacturer in Mexico — 100% ROI & Full Cost Recovery in Just 4 Months
Challenges Faced: Located in Monterrey, Mexico, this factory specializes in custom 1.0–2.5 mm stainless steel cabinets and commercial sinks for North American restaurant chains. With experienced local TIG welders commanding high monthly salaries of $2,200–$2,500 and being in extremely short supply, the factory was forced to hire multiple entry-level workers. This led to severe thermal deformation and undercut issues when welding thin sheets. To conceal these defects, 5 workers were assigned to heavy grinding and polishing, racking up $1,600 per month in grinding wheel and abrasive consumable expenses alone. Order deliveries were frequently delayed, severely eroding overall profits.
Solution Implemented: The factory purchased 2 units of Baison WH1500 (1500W) Handheld Fiber Laser Welding Machines (equipped with SUP23T “4-in-1” welding heads and SUP-AMF-A automatic wire feeders) to fully replace traditional TIG welding and post-weld grinding stations.
Remarkable Returns:
- Welding Efficiency Increased by 300%: Welding speed reached 4 times that of traditional TIG welding, producing smooth, even seams and reducing thin plate deformation rates to zero.
- Extreme Cost Reduction: Post-weld operations now require virtually no secondary grinding, cutting grinding labor hours by over 80%. This directly eliminated the need for 3 grinding workers and saved a massive amount on abrasive consumables.
- Ultra-Fast Payback: New operators mastered pulling clean, aesthetically pleasing welds with just 15 minutes of training. Within merely 4 months of deployment, the savings on labor salaries and consumables fully recouped the initial equipment purchase costs.
Case 2: Industrial Enclosure & Architectural Metal Guardrail Processing Plant in Poland — Full Equipment Cost Recovery in 4.5 Months
Challenges Faced: Situated in Poznań, Poland, this plant undertakes long-term outsourced manufacturing of galvanized sheet distribution boxes and stainless steel architectural guardrails for European clients. Traditional MIG/TIG welding produced heavy spatter and severe blackening/scaling along the weld seams. Compounded by high local industrial electricity costs in Europe, the factory was pushed to the brink of razor-thin profit margins. Furthermore, chemical acid pickling paste had to be used after every weld to remove slag—creating huge environmental compliance pressure and drastically bottlenecking the entire production line’s delivery pace.
Solution Implemented: The plant introduced the Baison WH1500 Handheld Laser Welder, making full use of its integrated “Welding + Weld Seam Cleaning” capability. Operators can directly switch modes immediately after welding to rapidly clear oxide layers and black scaling along the seams.
Remarkable Returns:
- All-in-One Utility with Zero Acid Pickling: Weld seams feature a bright silver finish, completely eliminating high-pollution chemical acid pickling and heavy mechanical grinding. Comprehensive production costs per workstation dropped by 33%.
- Sharp Drop in Power Costs: Compared to older traditional arc welding equipment, laser welding power consumption fell by approximately 80%, drastically reducing monthly electricity bills.
- Total ROI: The plant not only fully recovered its equipment costs in 4.5 months, but also secured multiple high-margin export orders from demanding German enterprises thanks to its aesthetically superior and consistent weld seams.
The Laser Era: Business Value of All-in-One Equipment
The Baison WH1500 (1500W) Handheld Fiber Laser Welder delivers advanced industrial laser technology to fabricators of all sizes in a cost-effective, skill-free, 4-in-1 format.
By covering the full workflow—welding, cutting, cleaning, and weld seam cleaning—it eliminates core industry pain points like thermal distortion, heavy grinding expenses, and high welder wages. With an extremely short ROI payback period of just a few months, it directly converts lost labor and consumable overhead into pure profit.
Adopting fiber laser technology is no longer just an equipment upgrade—it is an essential strategy for global metal fabricators to boost efficiency, cut costs, and win market dominance.
FAQs
Q1: What materials and thicknesses can the Baison WH1500 weld?

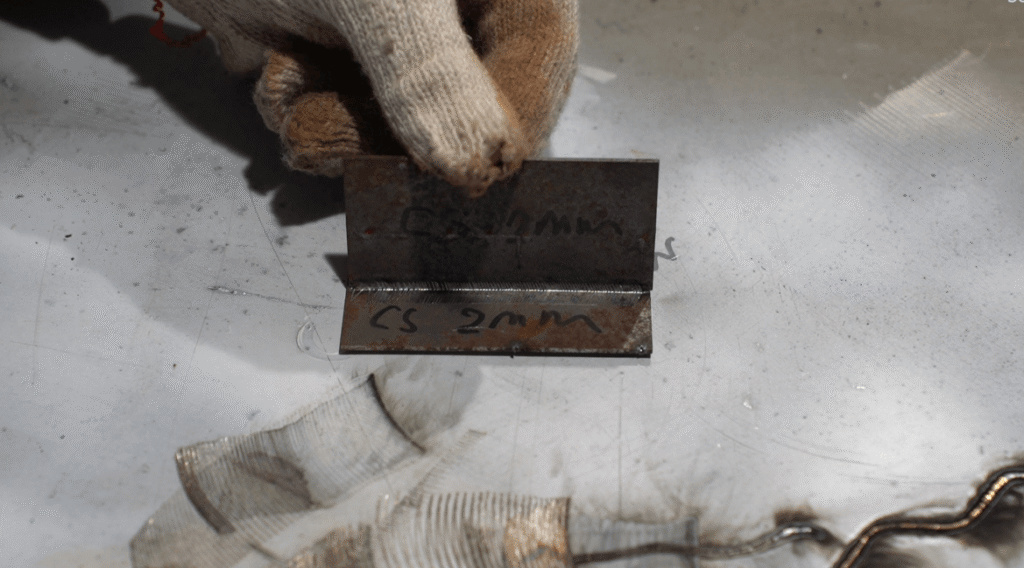

A1: Optimized for thin-to-medium sheets: Stainless Steel, Carbon Steel, & Galvanized Sheet (0.5–4.0 mm), and Aluminum Alloy (0.5–3.0 mm). Handles gaps up to 0–5 mm with automatic wire feeding.
Q2: How hard is it for inexperienced workers to operate?
A2: Extremely easy. Features a 25-language system, preset parameters, and a lightweight 0.65 kg torch. Workers can weld perfectly with just 10–15 minutes of training.
Q3: How does the WH1500 dramatically cut grinding and power costs?
A3: High precision eliminates spatter and deformation, cutting grinding time/abrasives by 80%+. High energy efficiency also slashes power consumption by 80%–90% compared to traditional arc welding.
Q4: How do you switch between the “4-in-1” functions (Weld, Cut, Clean, Weld Seam Clean)?
A4: Simply swap the corresponding copper nozzle/lens on the SUP23T torch and switch modes with one click on the touchscreen.
Q5: Are replacement parts and maintenance expensive?
A5: Extremely low cost. Only requires replacing inexpensive protective lenses (every 3–5 days) and nozzles (monthly). The laser source lasts for tens of thousands of hours.
Stop High Labor & Grinding Costs—Maximize Profit with Baison WH1500!
Don’t let outdated TIG welding and endless grinding drain your bottom line.
Choose the Baison WH1500 Handheld Fiber Laser Welder—featuring skill-free operation, high efficiency, and versatile 4-in-1 technology—to eliminate hidden losses and turn saved expenses directly into pure profit!
