TL;DR: High industrial rent and tight workshop footprints often stall automation upgrades for metal fabricators, HVAC duct producers, and hardware manufacturers. The BAISON SJC3 Enclosed Coil-Fed Fiber Laser Cutting Machine solves this by integrating uncoiling, leveling, servo feeding, cutting, and unloading into a single 5-in-1 compact footprint. Supporting both coil processing and flat sheet cutting, this fully enclosed CE-compliant machine utilizes automated common-line nesting to slash material scrap from 15% down to 5%—helping shop floors maximize ROI in cramped facilities.
Skyrocketing Rent & Cramped Shop Floors: The Financial Strain on Overseas Workshops
Industrial real estate rates and shop-floor labor costs across North America, Europe, and Southeast Asia continue to climb. For small and medium-sized metal fabrication shops, physical square footage is often the bottleneck to scaling:
- Traditional Split Line Burden: Installing a conventional coil line—a standalone decoiler, leveler, loop bridge, feeder, and flatbed laser—demands 15 to 30 meters of floor length, gobbling up prime shop space.
- Flatbed-Only Limitations: Stick solely to standard sheet-fed lasers, and your operation remains tied to pricier pre-cut sheets, higher manual loading labor, and endless material staging piles.
Unlocking continuous coil-fed productivity without adding square footage or taking on higher lease payments is the ultimate machinery selection challenge for modern plant managers.
If you are evaluating broader laser machine options alongside shop floor layout, read our comprehensive Fiber Laser Cutting Machine Buying Guide 2026 for an in-depth cost & spec breakdown.
The Solution: How BAISON SJC3 Integrates “Coil-to-Part” in a Compact Footprint
Rather than bolting an uncoiler onto a standard machine, the BAISON SJC3 features an integrated, purpose-built architecture that merges uncoiling, leveling, servo feeding, laser cutting, and part unloading.
- Maximize Floor Space: SJC3’s tight line-layout reduces total machinery footprint by over 30% compared to traditional modular coil lines, making it easy to fit into tight bays while leaving clear safety aisles.

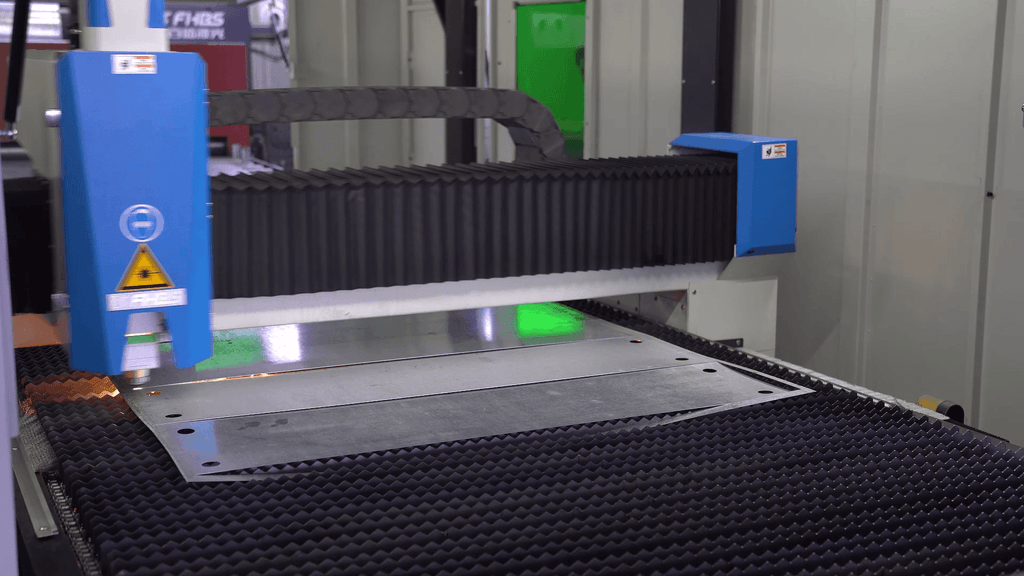

- Dual-Mode Versatility (Coil + Sheet): Continuously slice through 0.5–2.0 mm mild steel or 0.5–1.5 mm stainless steel coils. Need a quick run of custom flat sheets? Switch modes on the fly to handle small-batch jobs without needing a second machine.

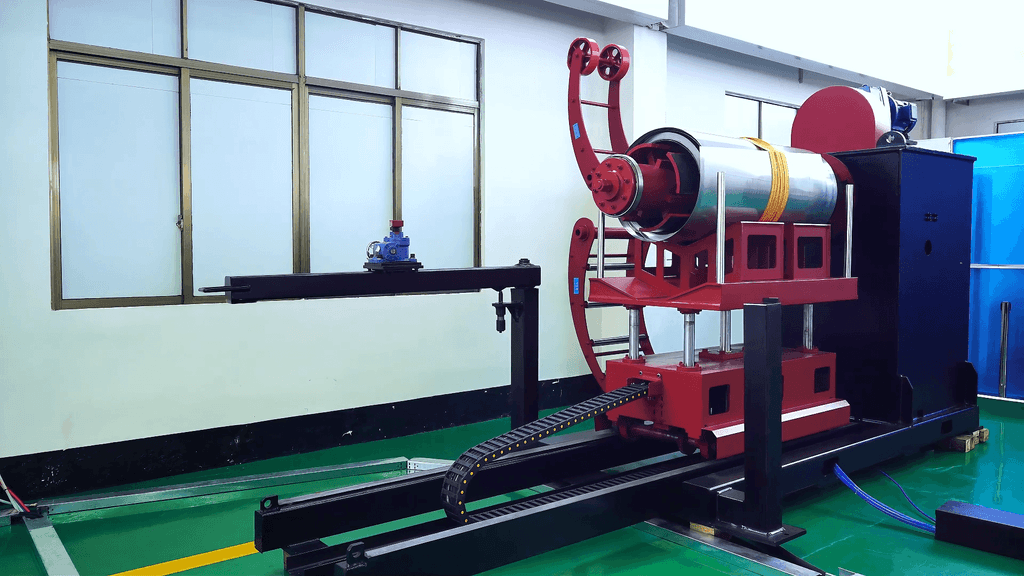

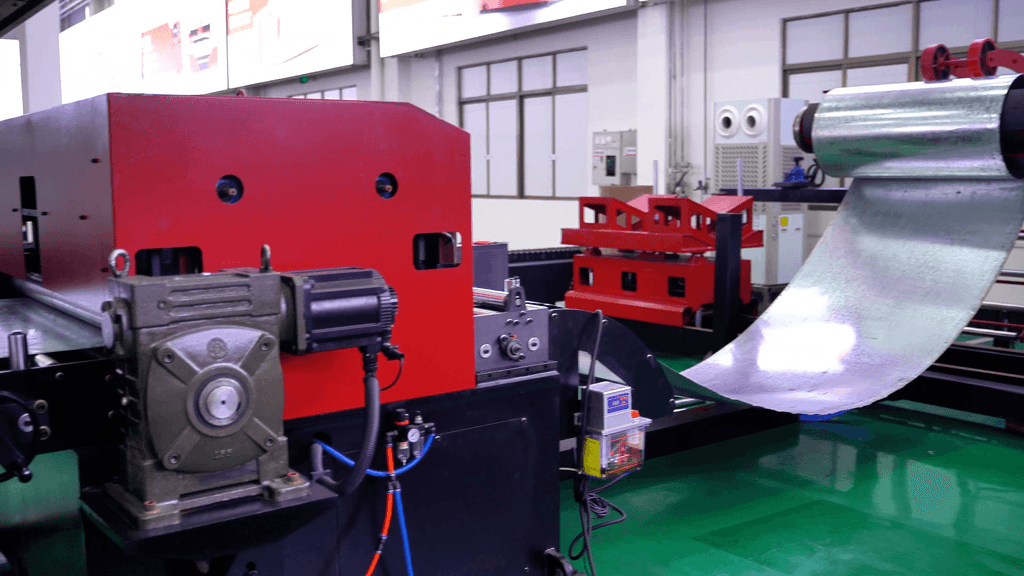

- Precision Leveling & Synchronized Feeding: Equipped with a heavy-duty hydraulic uncoiler and multi-roll precision leveler, internal coil stress and wave-edge defects are eliminated—holding leveling tolerance to < 1 mm/m for a flat, reliable cutting surface.
This sub-millimeter feeding consistency is backed by Baison Laser’s vertically integrated manufacturing, where key machine bed components and drive frames are fully engineered and stress-relieved in-house.
⚠️ Application Note: The SJC3 line is optimized specifically for thin-gauge coil processing (up to 2.0 mm). High-gauge heavy plate coils require specialized thick-plate configurations. Curious if your specific material grade and coil width fit this footprint? Contact our engineering team for a quick feasibility check.
The Numbers: Real-World ROI & Cost Reductions
When evaluating machinery, return on investment is the bottom line. SJC3 delivers savings across floor space, raw materials, and shop labor.
*Note: The financial estimates below are based on typical thin-gauge sheet metal and HVAC duct manufacturing scenarios. Actual savings depend on material grade, part nesting geometry, and daily operating hours.
SJC3 Integrated Coil Line vs. Traditional Modular / Flatbed Setup
| Metrics | Traditional Split Coil Line / Flatbed Laser | BAISON SJC3 Integrated Coil Machine | Financial & Operational Impact DOCX+ 2 |
| Footprint & Space | Requires extensive floor length for decoiler, leveler, loop pit, laser, and unloading | Fully integrated inline design; decoiler, leveler, cutter, and belt unloader fit tightly | Saves 30%–40% shop floor space, eliminating high lease overhead. |
| Material Yield | Standard sheet nesting is constrained by fixed sheet dimensions, leaving high edge waste | Continuous coil nesting with common-line cutting algorithm | Scrap drops from ~15% down to ~5%, significantly lowering raw material spend. |

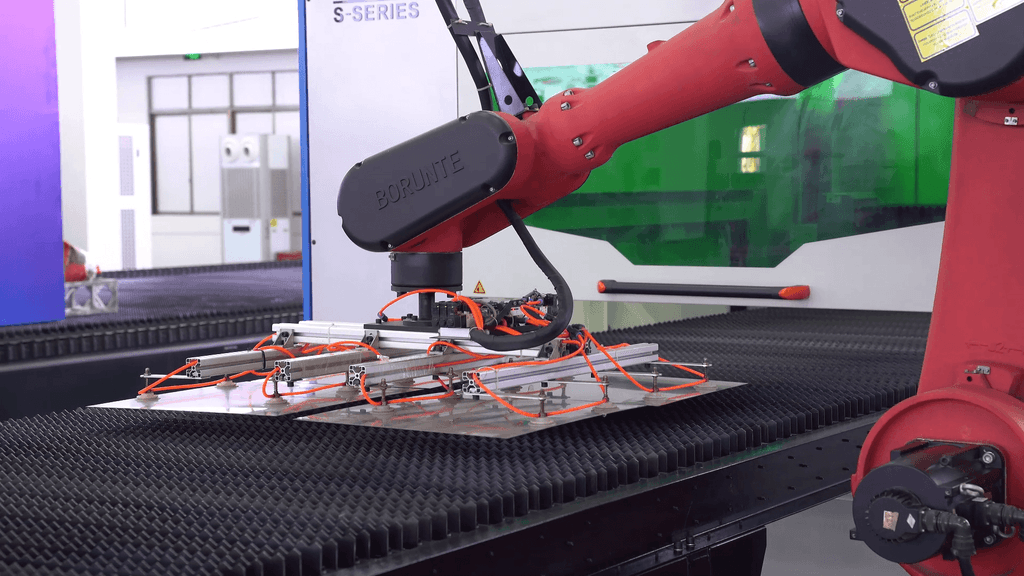

| Labor Intensity | Requires 3–4 operators for sheet loading, material flipping, part picking, and skeleton clearing | Automated continuous feeding and unloading; requires only 1 operator to monitor | Cuts direct labor costs by up to 70%, easing skilled operator shortages. |
| Production Cycle | Intermittent loading cycles; machine sits idle during manual sheet exchanges | Non-stop cycling; “one-click start” from raw coil to finished parts | Increases throughput by 40%+, sharply cutting job turnaround times. |
What Does This Mean for Your Bottom Line?
For a fabrication plant processing 1,000 tons of thin-gauge sheet metal annually, a 10% boost in material yield alone saves tens of thousands of dollars in raw coil purchasing each year. Factor in reduced rent expenses and cutting 2 to 3 operator shifts, and most overseas shops achieve full payback within 12 to 18 months.
Manufacturing thin-metal components for office furniture or enclosures? See how thin-sheet laser cost reduction strategies apply across other fast-paced fabrication sectors.
Want to see your exact payback timeline? Request a personalized ROI calculation based on your current local electricity rates, labor costs, and scrap percentages.
Safety Compliance & Clean Working Environments
Industrial regulations across North America (OSHA) and Europe (CE) mandate strict operator safety and environmental standards.

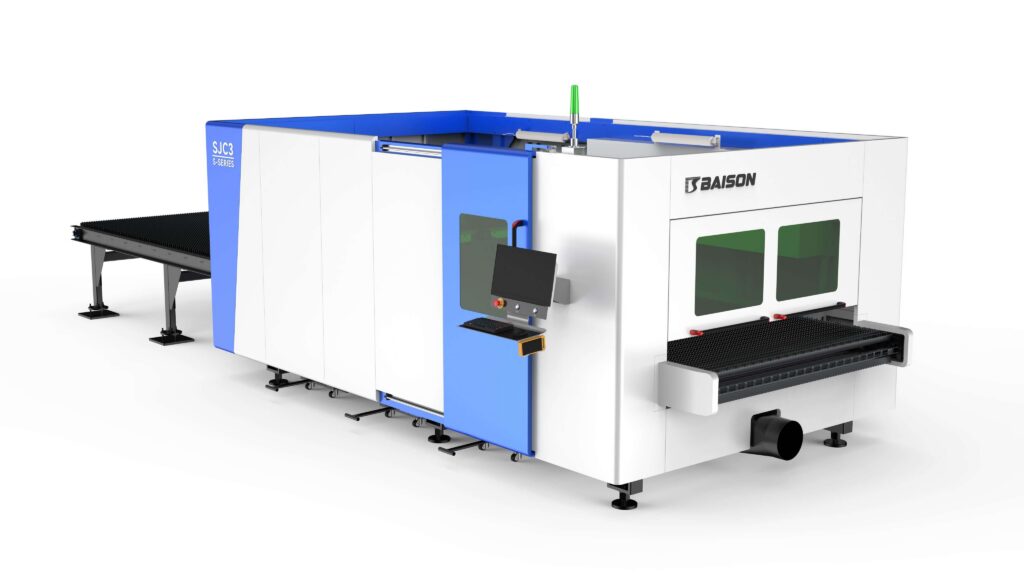

The BAISON SJC3 features a fully enclosed protective housing fitted with CE-certified laser safety glass windows:
- Radiation & Fire Protection: Completely isolates high-power fiber laser radiation and cutting sparks within the enclosure to safeguard operators.
- Multi-Zone Fume Extraction: Internal zonal dust extraction collects and filters fumes at the source, ensuring clean air and easy compliance with environmental inspections.
- Noise Reduction: The full enclosure dampens mechanical motion and high-pressure assist gas sound, creating a quieter, safer working environment.
Real-World Case: Boosting Output in a Tight Workshop
An HVAC duct and ventilation accessory manufacturer in Northern Italy faced a common growth roadblock: their historic workshop was landlocked in an urban industrial park where leasing additional space was prohibitively expensive. They relied on flatbed cutters, leaving the shop floor cluttered with pallets of galvanised steel sheets and narrow, hazardous walkways.
After replacing their old setup with a BAISON SJC3 Enclosed Coil Laser Cutter:
- 80 square meters of floor space previously tied up in sheet storage was freed up and converted into an assembly line.
- Coils are now loaded automatically via a hydraulic cart, running smoothly through the 1.5 m leveler straight into the enclosed cutting bay.
- The operation cut crew size down to 1 operator per shift while keeping scrap below 5%.
“The SJC3 breathed new life into our older facility,” noted the plant manager. “Without adding a single square meter of rent, our monthly output expanded by nearly 50%.” Want to know how this Italian plant laid out their workspace? Ask our team for sample workshop floor plan layouts.
Frequently Asked Questions (FAQ)
Q1: Is a coil-fed laser truly more space-efficient than traditional modular lines or multiple flatbeds?
Yes. The BAISON SJC3 integrates the hydraulic uncoiler, 1.5 m precision leveler, servo feeder, and laser cutting enclosure into one inline unit. Compared to standalone machines spread across a shop, it slashes footprint requirements by over 30%—making it ideal for high-rent or space-constrained facilities.
Q2: Can the SJC3 cut standard pre-cut flat sheets in addition to coils?
Absolutely. The system dual-supports continuous coil feeding and manual flat-sheet cutting. You can easily pause coil runs to cut custom, low-volume sheet orders without purchasing a separate flatbed cutter.
Q3: How does the full enclosure help with safety regulations and OSHA / CE audits?
The SJC3’s enclosure features CE-certified laser protective glass to block stray reflections and cutting debris. Coupled with multi-zone fume extraction, it keeps shop air clean and protects workers from high-power radiation, simplifying safety audits.
Q4: What are the primary cost-saving mechanisms of continuous coil cutting?
Key savings come from three areas:
- Raw Materials: Nesting on continuous coils with common-line cutting cuts scrap from ~15% to ~5%.
- Labor: Automated feeding and unloading require only 1 operator, cutting labor costs by up to 70%.
- Real Estate: The compact footprint minimizes machine space, reducing factory lease overhead.
Q5: How does BAISON support overseas installation, operator training, and maintenance?
BAISON backs every machine with 200+ service centers and 150+ field engineers globally. SJC3 units arrive pre-assembled for fast setup. To learn how our localized engineers handle quick-response maintenance and emergency spare parts delivery, explore our Global Laser Service & Support Network.
We offer 2-hour response times, remote diagnostic support, 24-hour on-site service dispatches, a 1-year comprehensive warranty, and lifetime software updates. Inquire today to check service center availability and field support response times in your region.
Unlock Your Workshop’s Full Potential
If rising factory rents, limited square footage, or high labor costs are bottlenecking your fabrication throughput, the BAISON SJC3 Enclosed Coil Laser Cutter offers a proven, high-ROI solution.
Contact the BAISON Engineering Team today to get a custom workshop layout proposal, book a free sample cutting trial, or request a tailored ROI analysis for your facility!
