In today’s global sheet metal fabrication and metal manufacturing market, factory operators face unprecedented dual pressures. On one side are expensive workshop rents and extremely constrained floor space—where traditional large-scale machinery frequently deters small and medium-sized shops.
On the other side are increasingly stringent environmental compliance and occupational safety regulations. Dust, smoke emissions, high-intensity radiation, and flying sparks from open-structure cutting machines continuously risk triggering severe environmental fines or even mandatory operational shutdowns.
When dealing with urgent rush orders, high-mix low-volume job shop demands, and sudden capacity surges, searching for industrial-grade cutting equipment that saves workshop area, complies with international safety standards, and guarantees a high Return on Investment (ROI) has become a vital priority for overseas shop owners.
The M3 Industrial-Grade Fully Enclosed Single-Platform Fiber Laser Cutting Machine, developed by Foshan Baison Laser Technology Co., Ltd. (Baison Laser), is an advanced commercial tool engineered specifically to solve these industry pain points. While inheriting Baison’s heavy-duty industrial machine tool DNA, the M3 model seamlessly integrates standard 3m × 1.5m large-format cutting capabilities into an ultra-compact footprint of just ~10.36 square meters.
Featuring full-machine CE international certification and a six-zone powerful smoke extraction system, combined with dual active intelligent lubrication, aviation-grade extruded aluminum gantry, and ±0.03mm repeatability precision, it delivers a high-safety, high-flexibility, and short-payback production solution for overseas clients.
Core Overseas Workshop Challenges & Baison M3 Commercial Solutions
For overseas sheet metal sub-contractors, automotive component manufacturers, and electrical enclosure fabricators, equipment procurement must look beyond the initial purchase price to evaluate long-term total cost of ownership (TCO) and operational yield. Overseas SME workshops typically struggle with four major bottlenecks:
Extremely Low Workshop Space Utilization:
Traditional dual-platform or large open-frame laser cutters often consume 25 to 35+ square meters, creating severe spatial congestion in tight facilities and preventing the installation of auxiliary automation systems.

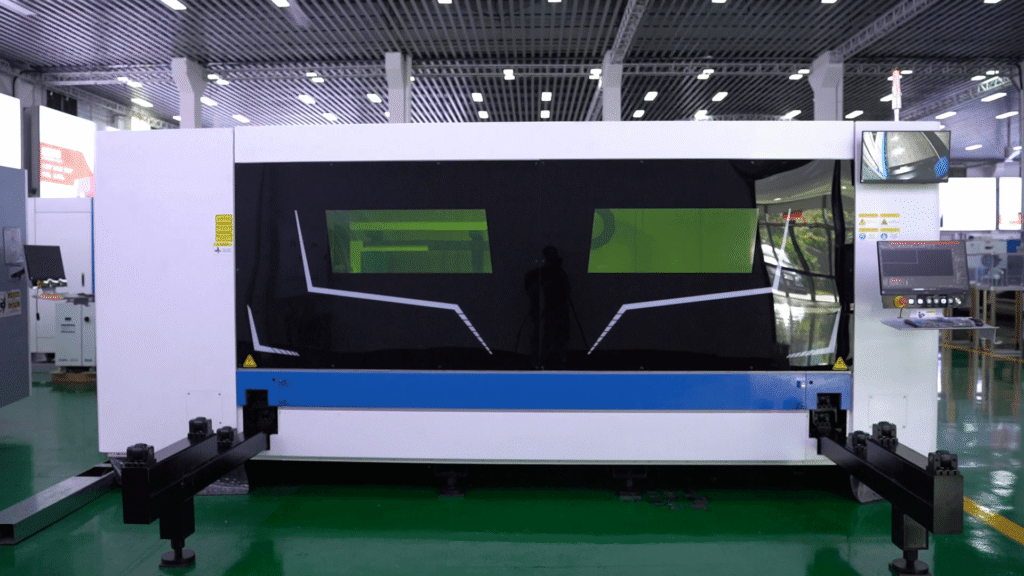

The Baison M3 utilizes an integrated compact structural design, deeply embedding the electrical control cabinet into the main body. Occupying only ~10.36 square meters, it can be shipped directly inside a standard 20-foot container as a single unit. This drastically cuts overseas on-site assembly work, lowering ocean freight charges and installation setup time.
Heightened Environmental & Safety Compliance Risks:
Strict environmental dust emissions and labor protection audits across Europe, North America, and Southeast Asia present serious risks. The Baison M3 incorporates a fully enclosed protective cover to completely contain high-temperature sparks, toxic fumes, and laser radiation during cutting. Positioned beneath the workbench are 6 independent cylinder-controlled zonal suction ports that dynamically activate directly under the cutting head position.
This guarantees workshop air cleanliness fully aligns with CE and international environmental standards, eliminating potential regulatory penalties at the source.
High Equipment Failure Rates & Downtime Losses:
Budget machine tools with rough welding and non-climate-controlled electrical cabinets often experience rapid electronic component aging and bed deformation in hot, humid overseas climates. The Baison M3 machine bed undergoes fully automated welding, high-temperature annealing, and stress-relief aging processes.
Its gantry is crafted using a premium aviation-grade extruded aluminum molding process, ensuring low internal stress and rapid dynamic response. The electrical cabinet features an independent constant-temperature industrial air conditioner, maintaining PLC and servo drives at a steady 22°C working environment to guarantee uninterrupted 24/7 heavy-duty operation.
High Labor Intensity & Inefficient Loading/Unloading:

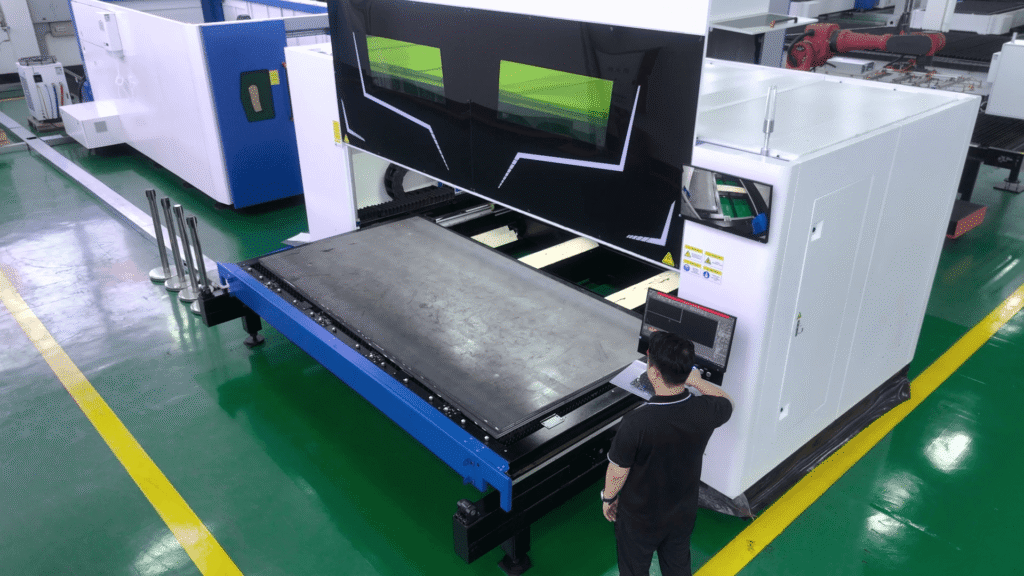

Conventional single-platform cutters involve tedious manual sheet handling, which frequently causes surface scratches. The Baison M3 features a 100% fully extendable motorized side-pull platform operated via push-button control, supporting stop-at-any-point and full-stroke automatic extension.
Equipped with multi-group omnidirectional heavy-duty ball transfer units and manual plate clamping mechanisms supporting up to 1,000 kg load capacity, it allows a single operator to handle heavy plates easily while seamlessly integrating with robotic arms or automatic loading/unloading systems to significantly reduce labor overhead.
Baison M3 Capabilities: High-Precision, High-Efficiency Multi-Industry Processing

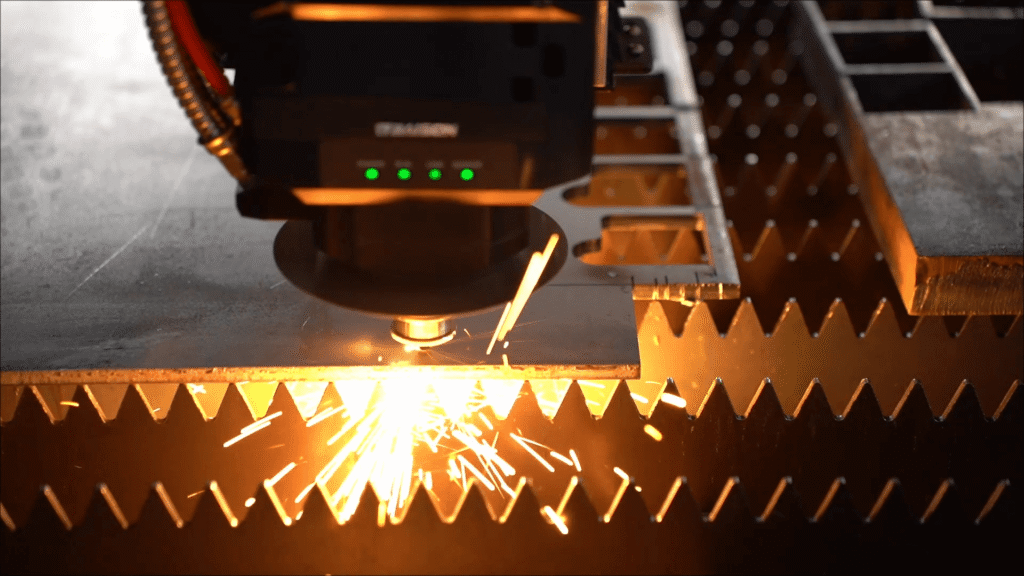

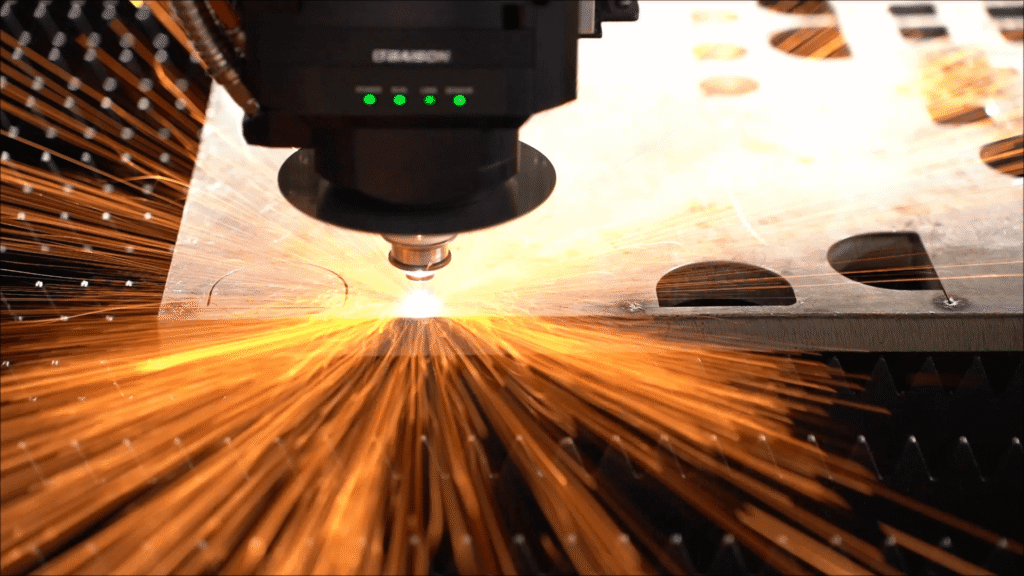

The Baison M3 Fiber Laser Cutting Machine is specialized in cutting various medium-to-thin metal sheets, achieving high-speed precision cutting across carbon steel, stainless steel, aluminum alloy, brass, galvanized steel, electrolytic plate, and titanium alloy. Equipped with a Raycus fiber laser source and a RayTools intelligent auto-focus cutting head, the system delivers an electro-optical conversion efficiency of 30% to 40% and a service lifespan exceeding 100,000 hours.
In actual production environments, the Baison M3 is widely deployed across automotive parts, electrical enclosures, kitchenware & sanitary ware, advertising signage, agricultural machinery, power facilities, and general sheet metal job shops:
- Carbon Steel Precision Cutting: Supports compressed air and oxygen cutting modes. Maximum achievable cutting thickness reaches up to 25 mm, with batch production quality processing spanning 1–20 mm. For thin carbon steel, utilizing compressed air mode significantly lowers gas consumption expenses (actual running costs vary based on local electricity rates and gas supply costs).
- Stainless Steel & Bright-Surface Cutting: Supports high-pressure nitrogen or compressed air cutting, with maximum cutting thickness up to 18 mm and high-quality batch processing thickness of 1–16 mm. Delivers clean, burr-free edge finishes with high surface smoothness, enabling parts to move directly to downstream assembly without secondary grinding.
- High-Reflective Material Processing (Aluminum & Copper): Superior laser beam quality combined with dual water-cooled collimation and focus protective lens structures enables stable cutting of up to 16 mm aluminum alloy and 12 mm brass, effectively mitigating back-reflection damage to optical components.
Note: Due to variations in ambient factory temperature, humidity, and specialty steel composition, actual extreme cutting parameters should be fine-tuned based on specific production environments. Click to request a customized process parameter plan.
Supplementary Context: When is the M3 Model Not the Ideal Choice?
The M3 workbench features a standard processing format of 3015 (3000 mm × 1500 mm), tailored primarily for small-to-medium sheet metal processing shops and secondary production cells. If your facility requires regular batch processing of extra-long plates exceeding 3 meters or extra-heavy structural steel components, choosing a large-format, high-power laser cutter model is recommended.
Market Comparison: Mainstream Laser Cutters vs. Baison M3 Advantages
To help overseas buyers intuitively evaluate commercial investment return, we have compiled a multi-dimensional technical and financial comparison between the Baison M3, conventional low-cost open single-platform cutters, and traditional heavy-duty dual-platform laser machines.
| Comparison Dimension | Low-Cost Open Single-Platform Laser | Traditional Heavy Dual-Platform Laser | Baison M3 Enclosed Fiber Laser |
| Factory Footprint | ~15–18 m² (Dust & smoke pollute entire shop) | ~25–35 m² (Massive footprint, unfriendly to small shops) | Only ~10.36 m² (Improves space utilization by 50%) |
| Environmental & Safety Compliance | No enclosure, intense light & dust spillover, risks compliance fines | Enclosed & compliant, but machine body is oversized | CE-standard full enclosure + 6-zone smart extraction (100% compliant) |
| Shipping & Installation Cost | Disassembled packaging, complex overseas site assembly | Requires expensive flat-rack containers, high ocean freight | Directly fits fully assembled in a standard 20ft container |
| Bed Structure & Precision | Simple welded steel tube, no aging treatment, prone to deformation | Cast iron or heavy welding, lower dynamic agility | Automated welding + annealing + aviation aluminum gantry (±0.03mm precision) |
| Electrical Safeguards | No climate control, high failure rate in hot climates | Some feature cabinet AC, cramped maintenance space | Side-mounted integrated 22°C constant-temp AC (Ultra-low failure rate) |
| Comprehensive ROI | High hidden maintenance costs, low resale value | Huge upfront capital investment, long payback cycle | Moderate capital threshold, saves freight & space (8–12 month ROI) |
Note: The estimated 8–12 month payback period serves as a reference calculation model based on assumptions regarding facility lease rates, annual processing volume, and local freight costs. Actual ROI payback timelines vary by country/region and do not constitute a formal financial guarantee.
As demonstrated in the comparison above, the Baison M3 does not simply shrink equipment dimensions; it optimizes machine structure and logistics transport while maintaining rigorous precision and industrial-grade durability. It eliminates environmental and breakdown risks associated with low-cost cutters while avoiding the massive spatial and freight burdens of traditional dual-platform systems—making it a highly viable investment choice for overseas SMEs and sub-contracting backup production units.
Real-World Overseas Case Studies: Overcoming Capacity Bottlenecks & Boosting Margins
Case Study 1: Electrical Cabinet Manufacturer in Istanbul, Turkey
The client previously operated an aging open-type laser cutting machine. Workshop air quality was consistently poor, resulting in regulatory warnings, while its large footprint blocked the installation of a new automated assembly line.
After introducing the Baison M3 6000W Fiber Laser Cutter, the factory immediately reclaimed nearly 15 square meters of production space. Powered by the M3’s 120 m/min maximum positioning speed and ±0.03mm repeatability, electrical cabinet door and side panel cutting efficiency increased by 40% with completely burr-free edges. The CE-certified full enclosure seamlessly passed local environmental inspections, and the client fully recovered the machine investment in just 9 months through savings in factory rent and secondary deburring labor costs.
Case Study 2: Automotive Parts Sub-Contractor in Monterrey, Mexico
This sub-contracting plant specializes in high-priority rush orders and short-run trimming for automotive stamped parts, requiring frequent changes between varying thicknesses of stainless steel and aluminum alloy plates. With their former standard single-platform cutter, manual loading routinely scratched metal sheets, and the electrical cabinet tripped frequently during summer temperatures exceeding 40°C.
Upgrading to the Baison M3 solved both issues: the 100% extendable motorized side-pull platform and omnidirectional ball loading system reduced single-plate loading time to under 1 minute, while the independent constant-temperature air conditioner eliminated heat-induced downtime. The plant’s operations team reported that the machine’s compact footprint and high operational stability substantially boosted their capacity to take on high-margin rush orders.
Frequently Asked Questions About Baison M3 (FAQs)
Which industries and production scenarios best suit the Baison M3?
The Baison M3 is custom-engineered for sheet metal fabrication, electrical enclosures, automotive components, kitchen & bath fixtures, and advertising signage. It is particularly ideal for workshops with tight floor space, strict environmental compliance mandates, high-mix low-volume rush orders, or those requiring a secondary backup production machine.
Does the Baison M3 support custom expansion and automation integration?
Yes. The M3 motorized side-pull workbench adopts a modular design with a 1,000 kg load capacity, enabling seamless future integration with robotic arm loading/unloading systems. Additionally, laser source power options and dust collection systems can be customized to specific customer requirements.
What are common misconceptions when selecting a single-platform enclosed laser cutter?
A frequent mistake is focusing solely on the purchase price while ignoring actual smoke extraction efficiency and bed stress-relief aging processes. Low-end enclosed machines often suffer from poor airflow and lack climate-controlled cabinets, causing frequent damage to optical lenses and electrical components. The Baison M3 utilizes 6-zone smart extraction and constant-temperature cabinet AC to ensure long-term stability.
How is overseas after-sales service and technical support guaranteed?
We provide 24/7 online technical support with a guaranteed response time within 2 hours, supported by local service branches in major global regions to deliver rapid assistance.
Is international ocean freight and on-site installation complicated?
Not at all. The Baison M3 features an integrated compact structure that fits entirely within a standard 20-foot container, eliminating the need for machine disassembly prior to shipping. Once delivered, operators simply connect power, water, and gas lines to begin production. Our technical team provides 24-hour responsive support to assist with setup.
Note: Due to global differences in industrial voltage and material specifications, please click to get a customized parameter and configuration plan.
Conclusion & Next Steps
Selecting the right laser cutting machine is a strategic investment that defines an overseas sheet metal fabricator’s core competitiveness. The Baison M3 Fully Enclosed Fiber Laser Cutter balances safety compliance, output efficiency, and machinery ROI through its compact ~10.36 m² footprint, CE-certified safe enclosure, powerful zonal extraction, and high-precision cutting performance. Whether deployed as a primary production workhorse or a dedicated rush-order cell, the M3 delivers measurable competitive advantages.
If you are evaluating workshop upgrade options or wish to analyze local cutting cost estimates for your specific materials, contact our technical expert team today for free sample cutting, detailed operating cost calculations, and customized machine selection solutions.
