In modern metal processing, the demand for laser applications keeps growing. Manufacturers expect faster cutting, cleaner edges, and lower operating costs. A stable and precise gas supply is the key to achieving these results.
Traditional manual gas adjustment depends entirely on operator experience. Gas concentration is hard to keep consistent, which often leads to gas waste, unstable cutting quality, and increased equipment wear. Production efficiency is easily affected.
Many factories also struggle with new operators making repeated adjustment mistakes and skill gaps when experienced staff leave. This uncertainty increases consumable costs and makes delivery schedules harder to control.
With years of expertise in gas blending, BAISON developed the MAP-009ST adjustable-ratio gas mixer and MAP-010ST fixed-ratio gas mixer, designed specifically for laser cutting applications.
These systems provide accurate, stable, and cost-effective gas supply, helping manufacturers improve cutting quality, reduce operating costs, and maintain efficient, reliable production.
Why Does the Laser Cutting Industry Need Professional Gas Mixing Systems?
In laser cutting, the gas mixing ratio and output pressure directly affect piercing speed, cut-edge color, kerf smoothness, and overall process stability. Traditional manual gas adjustment often leads to inconsistent results due to inaccurate ratios, pressure fluctuations, or aging equipment.
This becomes even more problematic in flexible production environments where materials and thicknesses change frequently, causing longer setup time and higher gas waste—ultimately lowering overall line efficiency.

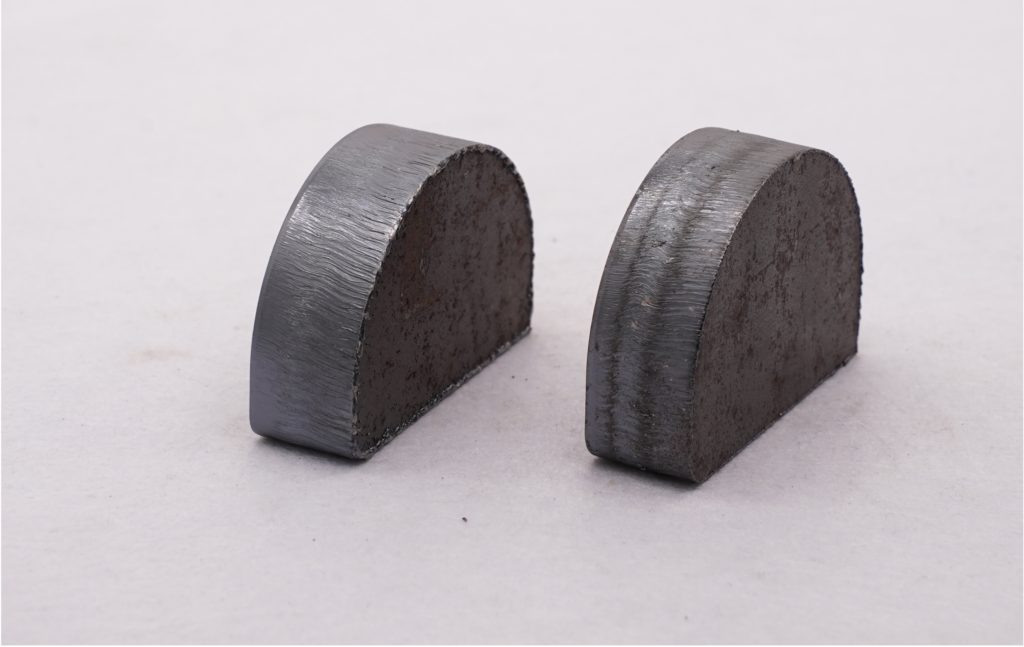

When cutting thick plates, high-carbon steel, stainless steel, and other materials, manual gas control is often unable to match the precise requirements of each material. This commonly results in rough kerfs, darkened edges, or excessive burrs, increasing rework time and reducing profit margins.
To address these industry-wide challenges, the MAP Series Gas Mixing Systems provide accurate pressure control and stable gas concentration, ensuring consistent cutting quality and reliable production from start to finish.
MAP-009ST: The Best Choice for Multi-Process, Adjustable Gas Mixing
Flexible adjustment for diverse cutting needs
For factories that frequently switch cutting parameters, the MAP-009ST offers clear advantages. Its adjustable mixing design supports a wide 0–10% VOL concentration range, allowing operators to easily set the desired oxygen–nitrogen ratio.
This enables precise control of the heat-affected zone, piercing speed, and cut-edge quality—ideal for multi-material, small-batch, and highly flexible production.
High-Precision, High-Stability Adjustable Gas Mixing
The MAP-009ST delivers ±0.3% VOL mixing accuracy, one of the best in the industry. It can run continuously for long periods without concentration drift, ensuring fully controlled and predictable cutting performance.
With a wide 12–250 Nm³/h flow range, it fits both small workshops and large-scale mass production. Its 0–2.5 MPa adjustable output pressure makes it compatible with different laser powers and gas circuit designs, providing stable gas supply under various complex working conditions.
The system also features an energy-efficient gas path design that reduces gas consumption while maintaining precise ratio control. Industrial-grade components enable thousands of hours of continuous operation with no recalibration required, significantly cutting labor and maintenance costs.
Stable Supply, Even Under Gas Source Fluctuations
The built-in pressure synchronization module automatically balances inlet pressure, ensuring mixing accuracy remains unaffected by upstream pressure instability. Even in workshops with fluctuating supply pressure, the system consistently delivers uniform mixed gas, keeping cutting results stable and drift-free.
MAP-010ST: Fixed-Ratio System for High-Volume, Unmanned Production
Ready to Run — Ideal for Automated Production Lines
For factories focusing on high-volume, long-term stable production, the MAP-010ST fixed-ratio mixer is the optimal choice. Each unit is precisely calibrated before delivery; simply connect the gas source and start production. No frequent adjustments, no operator dependency—making the entire cutting process standardized and automated.
Constant Output for Zero Downtime
The MAP-010ST provides stable gas concentration and 1.5–2.0 MPa constant output pressure, keeping cutting quality consistent during high-speed operation.
On fully automated lines with auto-loading/unloading and long periods of unattended operation, it dramatically reduces downtime and rework caused by gas supply issues, ensuring maximum line stability.
Designed specifically for automated laser cutting pipelines, it integrates seamlessly with unmanned production systems, synchronizing gas supply, cutting, loading, and unloading—enabling truly automated, human-free operation that meets modern smart-factory requirements.
Industrial-Grade Design: Stable, Safe, and Easy to Deploy
To handle the demanding environments of laser cutting factories, both MAP models feature a durable 304 stainless steel enclosure with strong corrosion resistance and excellent environmental durability.
The rear panel uses a clearly divided layout for main gas, auxiliary gas, and mixed gas ports. With clear pipeline labeling, installers can connect and commission the unit quickly, significantly shortening deployment time.
The system comes in a compact 550 × 390 × 280 mm structure with a well-organized internal layout. Weighing only 28 kg, it integrates easily into existing gas systems without occupying additional floor space.
For transport, the device is protected with reinforced wooden crates, foam padding, and moisture-proof sealing to prevent vibration or humidity damage. Customers can begin installation and production immediately after receiving the equipment.
The unit is also designed with dust-proof and moisture-resistant protection, ensuring reliable operation even in harsh workshop conditions. Key components are well-sealed and require no frequent maintenance—only simple periodic inspections—reducing long-term labor and operational costs.
Pre-Calibrated for Hassle-Free Use
Each device undergoes precise calibration and aging tests before leaving the factory. Once connected to power and gas, it operates stably without the need for on-site fine-tuning. Even new operators can get started quickly, improving on-site efficiency and reducing training time.
Cost Reduction & Efficiency Gains: How the MAP Series Helps Laser Factories Save More
In laser cutting, gas expenses make up a large portion of overall production costs and directly impact factory profitability. The MAP Series Gas Mixing Systems are designed specifically to reduce cost, improve quality, and boost efficiency.
With micron-level mixing accuracy, the system eliminates gas waste at the source. Instead of relying on expensive pure nitrogen or pure oxygen, factories can use economical mixed gases while still achieving — and often surpassing — the cutting performance of pure gases. Monthly gas cost reduction becomes straightforward and predictable.
Even more importantly, stable pressure output significantly reduces nozzle wear, protects lenses, and lowers optical contamination. This means laser machines run longer, fail less, and experience far fewer unplanned stops — truly delivering less consumables, less maintenance, more output.
By removing dependence on operator experience, the system ensures fully standardized and automated gas supply. One person can easily manage multiple production lines, improving labor efficiency.
While capacity increases, the cost structure stays tightly controlled, ensuring higher profit per cut.Field data shows that most factories using the MAP Series save 15%–30% on monthly gas costs alone.
Combined with reductions in consumables, manpower, and downtime losses, the investment can typically be recovered within 3–6 months, with long-term operation further expanding profit margins.
BAISON MAP Series: Redefining the Core Value of Gas Supply in Laser Cutting
Whether you run flexible production with many material types and small batches, or fully automated, long-cycle mass production lines, the MAP Series provides a stable, efficient, and low-cost gas supply foundation.
It ensures consistent cutting quality, extends equipment lifespan, simplifies production management, and strengthens competitiveness in fast-moving markets.
The MAP Series is not just a gas mixer — it is core infrastructure that enhances cutting quality, optimizes factory cost structure, and accelerates smart-manufacturing upgrades for modern laser cutting plants.
FAQ
Q1. What is the mixing accuracy of the MAP Series?
Both models deliver ultra-high accuracy at ±0.3% VOL, fully meeting the stability requirements of laser cutting.
Q2. What is the main difference between MAP-009ST and MAP-010ST?
MAP-009ST: Adjustable mixing ratio (0–10% VOL), ideal for frequent process changes.
MAP-010ST: Fixed-ratio design for long-term, high-volume, continuous production.
Q3. What gases can the system mix?
It supports oxygen–nitrogen mixing, matching the mainstream gas configurations used in laser cutting.
Q4. Is the installation complicated?
No. The MAP Series features a clearly labeled rear panel and compact structure. Simply connect the main gas, auxiliary gas, and mixed gas lines, and the system is ready to operate.
Q5. Can the equipment run 24/7?
Yes. Both models are engineered to industrial standards and support 24/7 continuous operation, suitable for mass production and unmanned smart workshops.
Conclusion
With a comprehensive after-sales service system, BAISON provides each customer with tailored gas supply solutions, on-site installation and commissioning, routine inspections, and lifetime technical support. From model selection to long-term maintenance, the entire process is worry-free.
In short, the MAP Series Gas Mixing Systems deliver high-precision, stable mixed gas output, fully supporting high-efficiency laser cutting production. They enhance part consistency, improve line productivity, control consumable costs, and ensure superior processing quality.
Choose the BAISON MAP Series — Power Up Your Laser Cutting Performance
The MAP Series intelligent gas mixing system is engineered specifically for laser cutting, delivering stability, precision, and high efficiency in one solution. If you’re aiming to boost capacity and elevate cutting quality, this is the gas supply system built to drive your production forward.
Contact us today and let our expert solutions and professional support help your laser cutting business gain an edge and grow with confidence.
