For tube processing enterprises, profit is often not earned by raising unit prices, but by saving. When your factory is still troubled by the oversized remnants left by traditional tube cutting machines, low automated material-changing efficiency, and unstable processing precision, your competitors may have already upgraded their equipment and increased material utilization by 30%.
This is not a science popularization article about laser technology principles. This is a business analysis on how to redefine workshop profit margins through the Baison G24C medium-diameter tube laser cutting system.
We will directly target the pain points that cause your production costs to spin out of control, and show why high-efficiency factories in the industry are shifting from ordinary laser machines to Baison’s fully automated solutions.
Hidden Profit Drains: The Real Cost of Tube Processing
Through deep interactions with thousands of tube processing enterprises globally, we found that most factories unconsciously see their profits drain away despite owning equipment. Here are the core profit bottlenecks restricting your factory:
1. Remnant Waste: The Invisible “Asset Burning”
When handling tube ends, traditional cutting equipment typically requires a 100mm–150mm “safety allowance” to ensure chuck clamping stability. While this seems like necessary process loss, processing 500 times a day means nearly 50–75 meters of raw material turns directly into scrap daily. Over time, this “invisible” waste is literally incinerating your net profit.
2. Low Efficiency: Working Hours Eaten by “Waiting”
Many factory production lines are essentially “labor-intensive.” While the machine performs laser cutting, operators frequently experience downtime for handling, manual positioning, and alignment.
This “serial” workflow leaves machines idling in long waits for manual operation. If your machine spends 20% of its day waiting for feeding, your equipment depreciation and labor costs are doubly wasted.
3. High Rework Costs: The Price of Unstable Precision
Due to insufficient chuck clamping precision in older equipment, tube cutting edges often feature burrs or unevenness, triggering severe downstream issues: assembly steps are forced to add “manual grinding,” and poor welding fit keeps the scrap rate high. Rework not only consumes extra labor costs and delays delivery, but can even cause customer churn.
4. Lost Growth: Missing High-Margin Complex Orders
As market demands upgrade, customer requirements for shaped tubes (such as H-beams, I-beams, and oval tubes) are growing rapidly. However, due to the clamping limitations of legacy equipment, many factories cannot stably process shaped parts, forcing them to settle for low-margin round/square tube orders and passively abandon the lucrative custom market.
The Baison G24C Solution: Turn Cost Centers Into Profit Drivers
Addressing these pain points, the Baison G24C medium-diameter tube laser cutting system is more than just a machine—it is a comprehensive “cost optimization” framework.
“Zero-Remnant” Tech: Turn Waste Into Revenue

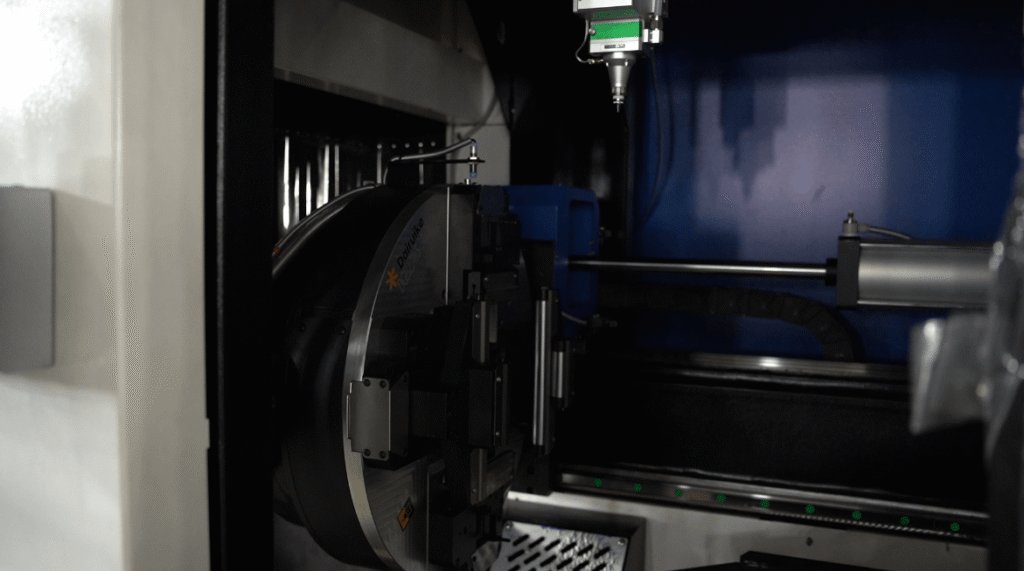

The Baison G24C features an innovative “dual-chuck zero-remnant” control logic. Through the precise linkage of the rear chuck moving forward and the front chuck, the system intelligently avoids interference as the cutting head approaches the clamping position, compressing unusable remnant length to within 20mm—or even achieving true “zero remnant”. This directly increases your material utilization by over 30%, allowing you to produce 1/3 more finished goods than competitors using the exact same material cost.
Parallel Automation: Keep Machines Running 24/7

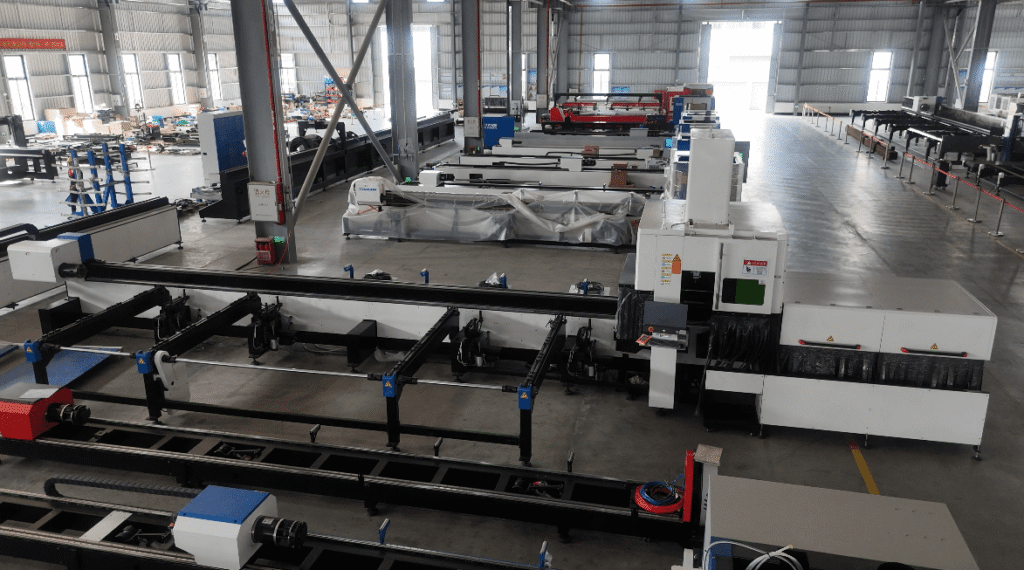

The G24C is equipped with an advanced semi-automatic cyclic loading system, realizing parallel operations for “cutting” and “loading”. While the machine high-speed cuts one tube, operators simply prepare the next stack on the other side.
This workflow eliminates equipment downtime caused by waiting for manual input, shortening non-processing prep time by 70% and dramatically boosting the production line’s Overall Equipment Effectiveness (OEE).
Full-Stroke High-Precision Chuck: Say Goodbye to Grinding & Achieve One-Step Perfection
Equipped with a full-stroke square-hole chuck combined with pneumatic double-row rollers, the G24C provides extremely high clamping rigidity. Powered by the FSCUT3000DE-G bus control system, even when facing irregular materials, the system can real-time compensate servo gain, ensuring that the cutting edge is mirror-smooth, directly eliminating subsequent grinding processes and fundamentally reducing labor and rework costs.
Ultimate Versatility: Unlock High-Profit Orders
The G24C is not only an expert in round and square tubes, but is specially designed for complex shaped tubes. Its wide-range clamping capability allows your factory to switch production lines instantly, easily undertaking high-value shaped tube orders in fields such as fitness equipment, heavy-duty shelving, and steel structure construction, shifting your enterprise from “low-price competition” to “high-end differentiated competition”.
Market Comparison: Data Don’t Lie
Don’t just listen to parameter tables; look at real production data. Below is the core dimension comparison between the Baison G24C and mainstream tube cutting machines currently on the market:
| Comparison Dimension | Baison G24C (Professional Industrial Grade) | Mainstream Standard Models | Impact on Profit |
| Remnant Control | Zero-Remnant Tech (ultra-short clamping loss) | Fixed Allowance (remnant > 100mm) | Directly reduce material procurement costs |
| Material Utilization | Increased by approx. 30% – 35% | Standard utilization | Directly increase annual net profit |
| Processing Precision | ±0.03mm (full-stroke high fidelity) | ±0.1mm – ±0.2mm | Reduce subsequent grinding and rework |
| Automation Logic | Parallel Pipeline (cutting & loading synchronized) | Serial (stop first, then reload) | Equipment OEE increased by 20%+ |
| Shaped Tube Support | Covers Round/Square/Rectangular/H/I/C Beams | Supports basic round/square tubes only | Significantly enhance order-taking capability |
| Maintenance Response | Smart Remote Parameter Compensation & Cloud Diagnostics | Rely on on-site manual troubleshooting | Reduce machine unplanned downtime risks |
As shown in the table above, the gap between the Baison G24C and standard models goes far beyond “cutting speed.” By deeply integrating zero-remnant technology, parallel automated operations, and ultra-high positioning precision, the G24C fundamentally transforms the factory’s cost structure at the source.
Within an annual production cycle, the G24C not only directly saves hard costs for you by reducing waste and rework, but also elevates your production line’s capacity from a baseline level to a high-profit bracket by increasing Overall Equipment Effectiveness (OEE).
Global Case Study: How Baison Redefines High-End Manufacturing Abroad
In a major European industrial hub, a long-standing enterprise specializing in mid-to-high-end fitness equipment and heavy-duty storage racks was bogged down in a quagmire of comprehensive costs brought by traditional production lines before introducing the Baison G24C intelligent tube laser cutting system.
At that time, the factory faced severe efficiency and quality crises. On the one hand, due to their long-term use of conventional tube cutting equipment, the chucks suffered from severely insufficient clamping stability when handling large-batch, long-size, and irregular shaped tubes, causing frequent burrs, jagged edges, and even dimensional deviations at the tube cuts. This directly forced the factory to add high-intensity manual grinding processes in subsequent welding and assembly steps, which not only kept monthly tooling and labor costs high, but also resulted in about 5% of finished products being scrapped due to poor assembly fit.
On the other hand, legacy equipment required a fixed remnant of over 100mm when handling tube ends, resulting in an astonishing daily loss of hundreds of meters of raw materials, which indirectly drove up the enterprise’s overall material costs and caused them to repeatedly lose their competitive edge during bidding.
Faced with the dilemma of severely squeezed profit margins, the enterprise management decided to carry out a comprehensive technological upgrade of the production line, ultimately and decisively introducing the Baison G24C medium-diameter tube laser cutting system. The introduction of this equipment fundamentally reconstructed the factory’s production logic and cost structure.
First, relying on the G24C’s unique “dual-chuck zero-remnant” technology and the precise clamping of the full-stroke square-hole chuck, the system can intelligently avoid interference at the cutting ends, compressing the frustrating remnant loss to the limit and directly increasing the factory’s overall material utilization by over 30%, saving the enterprise a large amount of hard-earned steel procurement expenses every year.
Second, aided by the FSCUT3000DE-G bus control system and the real-time servo gain compensation mechanism, the G24C firmly locks the cutting repeat positioning precision at ±0.03mm, making the cutting edges smooth as a mirror, directly eliminating tedious secondary grinding processes and greatly shortening single-piece turnover time.
More importantly, through the G24C’s efficient semi-automatic cyclic loading system and excellent adaptation capability for shaped tubes (such as H-beams and oval tubes), the factory not only completely resolved the capacity bottlenecks caused by frequent downtime waiting for manual adjustments, but also successfully expanded high-value custom orders previously abandoned due to equipment limitations.
Within just half a year after commissioning, the enterprise’s overall material scrap rate plummeted from 8% to below 1%, and backed by shorter delivery cycles and superior product precision, its unit price premium capacity in the European market increased by 12%, truly achieving a magnificent transformation from a “labor-intensive low-efficiency workshop” to a “high-profit smart manufacturing benchmark”.
You can watch this Baison G24C Tube Laser Cutting Machine Demo， to intuitively understand the machine’s automated loading and precision cutting performance in an actual factory environment.

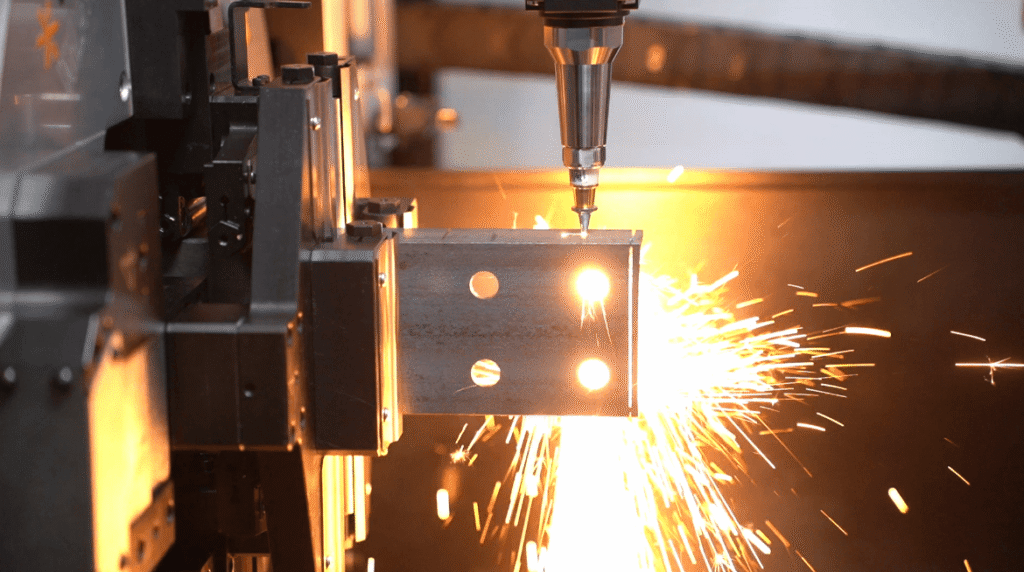

Baison G24C: Real-World Cutting Demo
We don’t just provide a machine; we deliver a complete value-creation logic of “turning raw materials into products”.
Full-Stroke High-Precision Chuck: Covering 90% of Market Demands

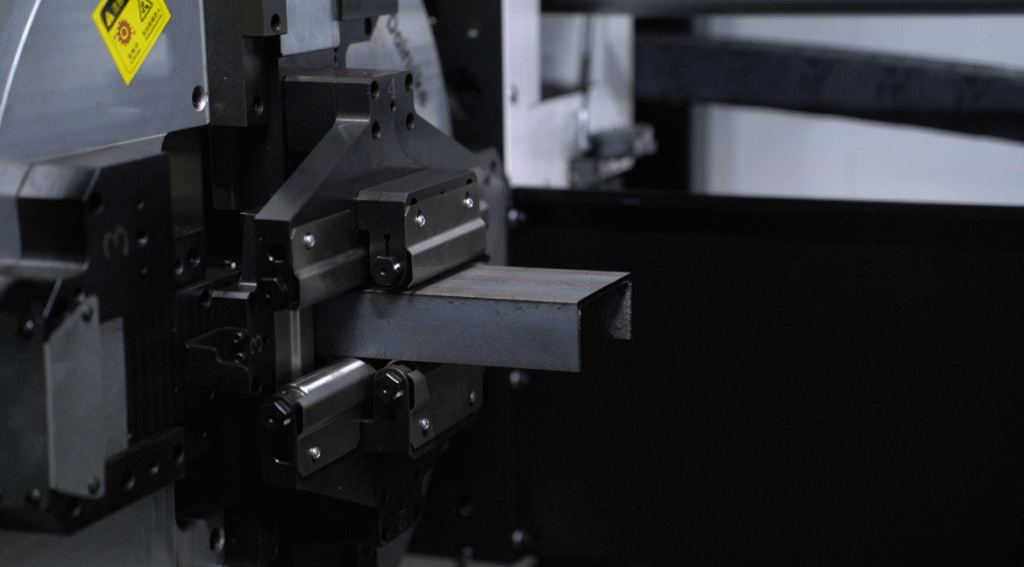

The core of the G24C lies in its versatility. Many factories dare not take on shaped tube orders because chuck clamping is unstable. Equipped with a full-stroke square-hole chuck combined with pneumatic double-row rollers, the G24C can easily handle round tubes, square tubes, H-beams, and I-beams. This means you are not just buying a cutting machine, but purchasing the capability to undertake more high-profit orders.
Engineered for Stability: The Core Advantage

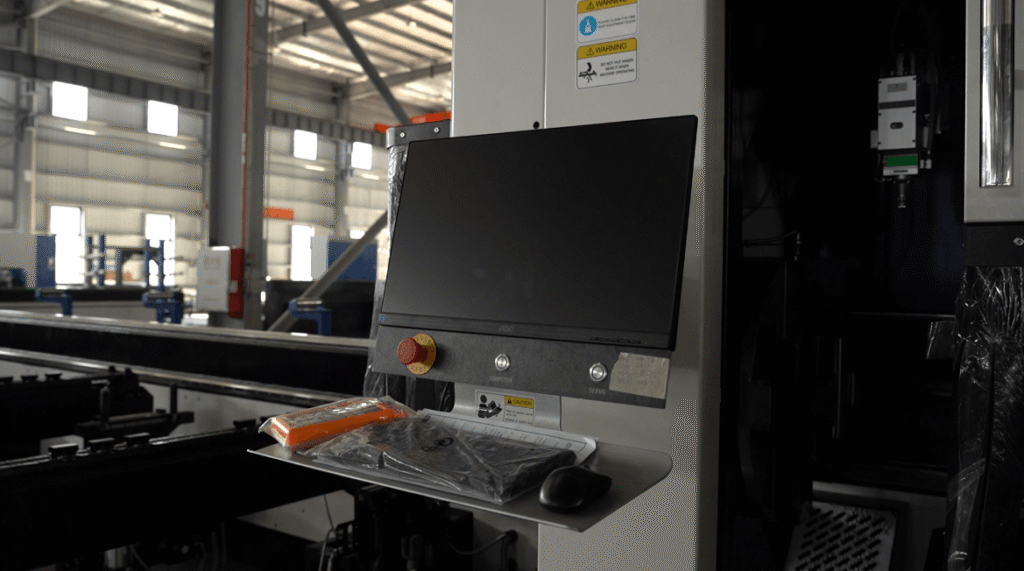

In Baison’s factory tests, we strictly use the FSCUT3000DE-G bus control system. Why use this configuration? Because we need extreme servo gain response. Through the error between the command path and feedback path, the G24C real-time compensates servo gain, ensuring that even when cutting irregular H-beams, the coaxiality between the lens and nozzle is always maintained within a repeat positioning precision of ±0.03mm.
Note: The above parameters are factory defaults based on standard materials. In actual production, due to steel carbon content, surface passivation thickness, and environmental humidity, limit processing parameters must be fine-tuned on-site. Contact us for a customized parameter optimization solution tailored by Baison senior process engineers.
FAQs
What Industries is the G24C Built For?
It is ideal for metal products, fitness equipment, rack manufacturing, and engineering structures requiring batch processing of round tubes, square tubes, and H/I beams.
Does It Support Special Shaped Tube Cutting?
Yes. The G24C chuck system is specifically designed for complex H-beams and I-beams. For extreme shapes, contact us for a custom fixture solution.
Common Pitfalls When Choosing a Tube Cutter
Many buyers focus solely on laser power, ignoring chuck clamping precision and automated loading synergy. Precision dictates your scrap rate, while automation dictates your net profit.
How Fast Can Your Team Master the Machine?
Baison provides full-process installation, commissioning, and operation training, ensuring your operators achieve efficient, skilled production shortly after delivery.
How to Get Optimal Cutting Parameters for Your Materials?
Due to environmental and batch variations, contact our technical team to receive a process micro-tuning guide tailored to your specific raw materials.
The Ultimate Investment: Zero Trade-Offs
In the fiercely competitive manufacturing industry, you are often eliminated not by technology, but by your cost structure. By choosing the G24C, you are not just upgrading a machine; you are transforming your workshop from “labor-intensive” to “efficiency-first” through automation and high-precision craftsmanship.
If you are ready to reduce waste and boost production efficiency, now is the best time.
