Application Industry
jewelry
Billboard
Kitchenware

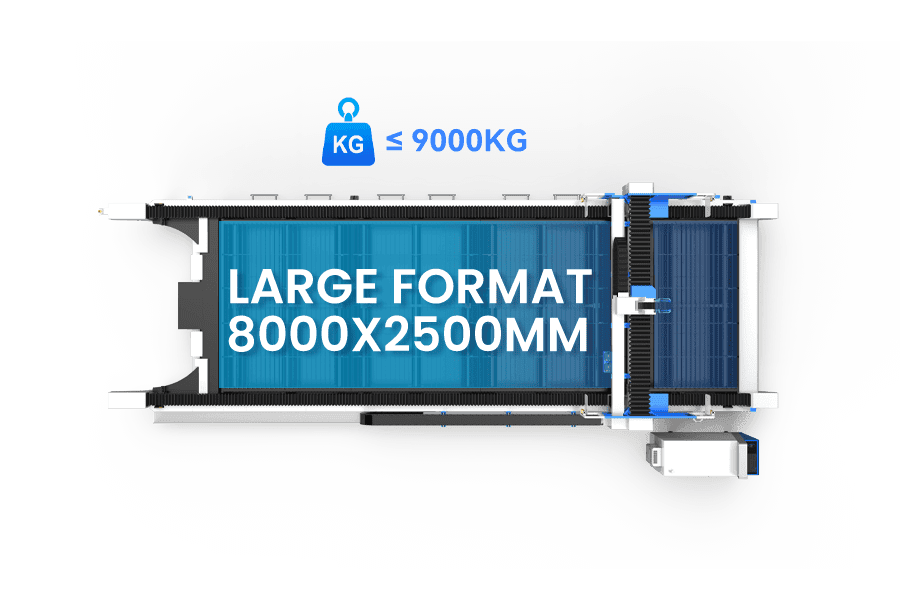

Large Format, High Load-bearing
The equipment has a heavy-duty machine bed, large processing area, and can hold large panels. It can carry up to 9000KG.

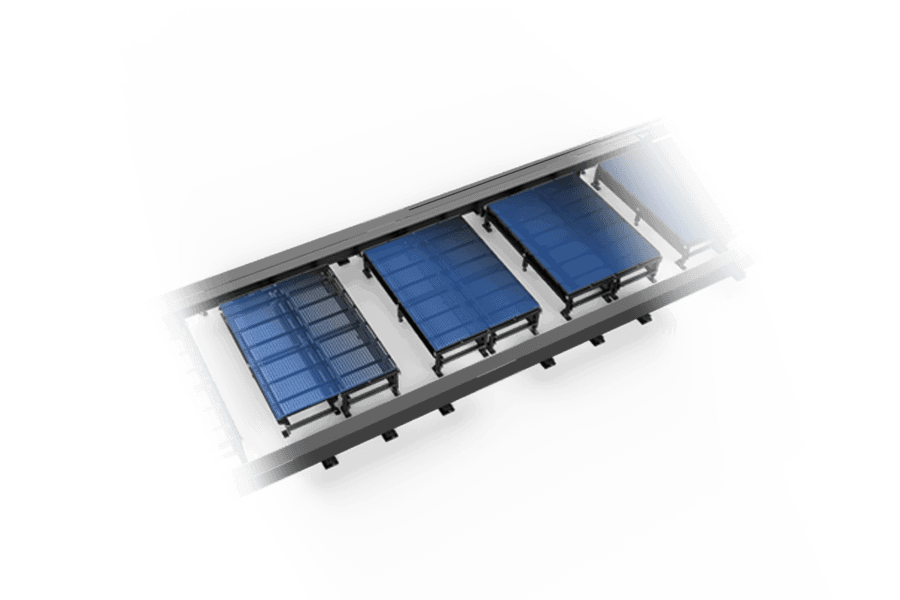

Split Lathe Bed, Modular Worktable
The bed and worktable are designed separately, effectively solving the impact on the bed during loading of medium-thick plates. The worktable is easy to install and maintain, and has low usage costs.

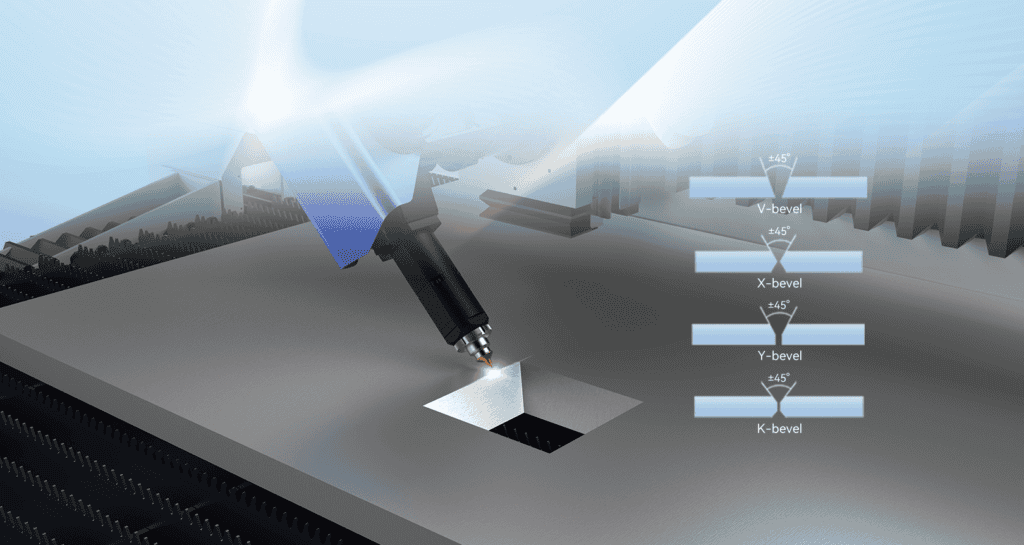

Bevel Cutting on Demand (*optional)
An optional professional bevel cutting system is available, which can perform fast bevel cutting at continuously variable angles of ±45°. It supports various bevel types such as V, Y, and X, meeting the bevel processing needs of different industries.

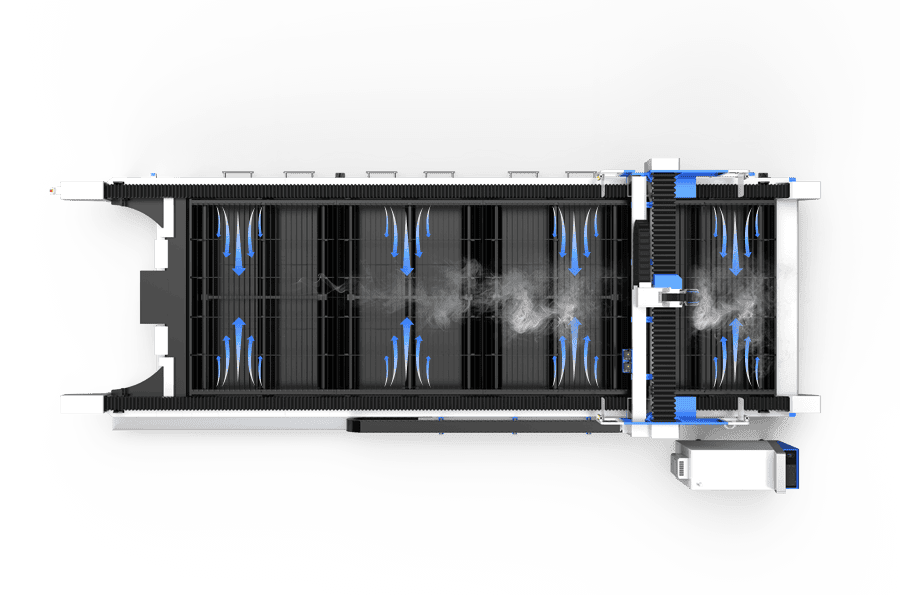

Sectional Follow-up Dust Extraction and Removal
The dust removal system is designed with zoned and segmented dust extraction. The smoke exhaust system moves synchronously with the crossbeam, sucking up dust and smoke on both sides simultaneously to ensure effective dust removal and prevent dust accumulation during equipment operation.

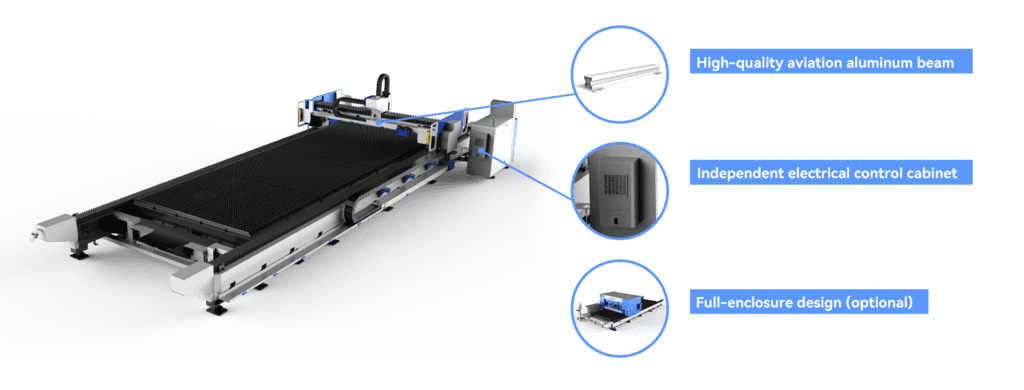

Multiple Configurations, Worry-free Processing
- High-quality aviation aluminum beam
The aviation aluminum beam, made by integrated extrusion process, is lighter in weight, better in rigidity, superior in dynamic performance, and faster in efficiency. - Independent electrical control cabinet
Equipped with a constant-temperature air conditioner to ensure stable operation of electrical components in a constant-temperature and humidity-controlled environment. - Full-enclosure design (optional)
The equipment features a fully enclosed beam cover design and is equipped with a fully enclosed protective curtain to effectively prevent safety risks caused by flying sparks.
