Laser Tube Cutting in the Automotive Industry: Use Cases & Benefits

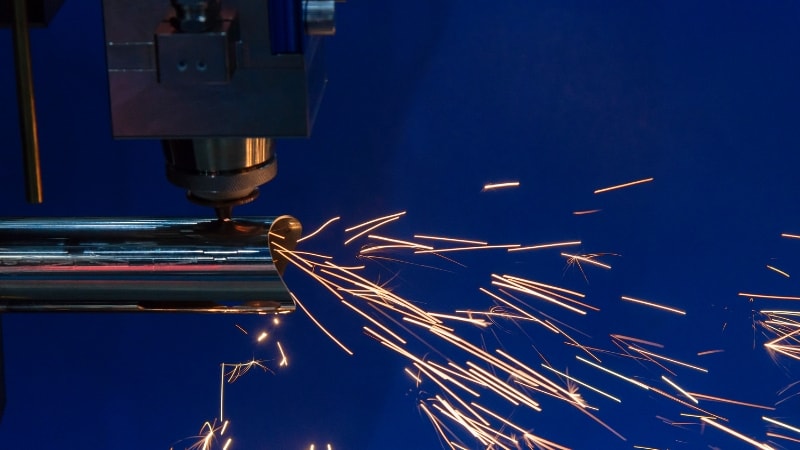

Laser tube cutting has emerged as a modern solution for precision manufacturing in the automotive sector. This technology offers superior accuracy compared to traditional cutting methods. It enables manufacturers to create complex shapes and maintain precise tolerances. This article explores the practical use cases of laser tube cutting in automotive manufacturing.
Why the Automotive Industry Uses Laser Tube Cutting
The automobile industry requires superior precision and lightweight yet strong tubular elements. The intricate designs of modern cars are too complicated to be managed by simple cutting tools. The materials can be wide-ranging. They cover steel and aluminium alloys. Each case necessitates a different cutting procedure.
The complexity of design in modern vehicles has gained much more weight. The cutting process should be flexible enough to work with a wide variety of materials and shapes. These requirements are usually not met with conventional mechanical sawing, drilling, and punching.
Laser tube cutting is a superior alternative to traditional cutting methods. It provides high accuracy in cutting settings. It can process a wide range of materials without requiring tool changes. This versatility is suitable for the various industries’ requirements of automotive production.
Key Use Cases of Laser Tube Cutting in Automotive Manufacturing
Various parts of cars are made with laser cutting. Every portion requires special cutting types. Let’s see the application of laser cutting on various parts of cars.
Chassis and Frame Components
Every vehicle is made up of chassis components. These are metallic tubes. They hold the entire body of the car. These have to meet high safety requirements. Laser cutting allows the production of multiple-angle cuts. This makes it an excellent fit and the ultimate strength.
The precision of the laser cutting eliminates gaps and misalignments in the chassis assembly. Such speed and accuracy are vital in structural soundness and crash efficiency. Laser cutting lets manufacturers create complex joint designs. Traditional methods couldn’t do this.
Exhaust Systems
Exhaust systems need stainless steel tubes. These tubes must withstand extreme temperatures and corrosive atmospheres. There is no burr and bare cut provided by laser cutting. This helps to block the gas leak and enhance the system. The sealed cuts do not require finishing operations.
The conventional cutting processes have rough edges that need a lot of deburring. Laser cutting has eliminated this additional process, making production time-effective and cost-effective. Exhaust system assembly also has a better quality of welding due to the clean cuts.
Seat Frames and Roll Cages
The roll cages and the seat frames must have intricate joints, bends and angles so as to work properly and also be safe. Laser cutting is able to make accurate notches and cutouts so that there is perfect assembly. This precision is crucial in structural support and the safety of passengers.
Complex geometries can be cut, which is used by designers to optimize the design of seat frames. It is possible to reduce weight without losing strength or safety. This optimization is more important when dealing with performance and racing.
Suspension Systems
The suspension parts involve tubes in control arms, links, and cross members. These components should be uniform and strong in high-volume manufacture. Laser beam provides quality parts that have the same precision and dimensions.
Suspension systems are vulnerable areas. Strength issues directly impinge on vehicle handling, hazard and safety. Laser cutting accuracy helps fit the tight tolerances needed for proper suspension design. This precision increases vehicle performance and reliability.
Battery Trays and EV Components
Electric vehicle platforms require precision cutting of tubes. This is to create battery trays and structural elements. Such components contain numerous utilizations of aluminium and lightweight alloys. These take advantage of laser technology. It does not alter material properties and gives accurate dimensions.
EV parts are to be embedded into high-voltage systems and meet safety needs. Laser cutting is accurate when these applications require precision. The clean cuts make sure that there is correct electrical isolation and the formation of the structure.
Benefits of Laser Tube Cutting for the Automotive Industry
The laser technology benefits the car makers a lot. It accelerates and lowers the cost of production. It also produces high-quality parts.
High Cutting Precision
The automotive industry needs close tolerances in crash safety and fitment. The tube laser-cutting process can meet tolerances of +/- 0.1mm. This accuracy allows perfect fits of parts when assembling with no further machining.
Large-scale manufacturing requires similar outcomes for the thousands of parts. The precision of the laser cut is maintained in the first and the final metallic parts. Such uniformity removes any quality fluctuation, leading to assembly and safety problems.
Increased Production Speed
Laser-cutting machines can run without stopping due to an automatic loading and unloading system. The amount of time spent on manual handling is reduced. The level of productivity is enhanced compared to automation. The manufacturer will replace slower cycle times with the conventional cutting processes.
The current tube laser cutting machine can work on several tubes at once. This ability advances the speed of production. It increases the cost-effectiveness of individual parts. Laser cutting is fast and accurate. This is why it is especially suited to robotic automotive assembly.

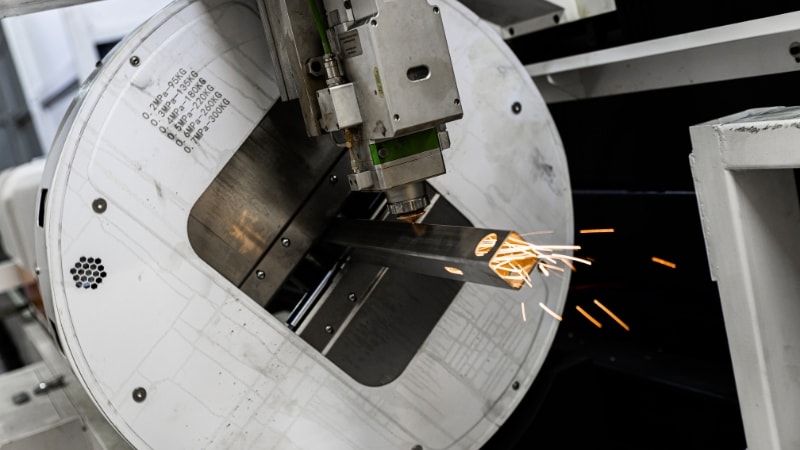

Complex Geometry & Multi-Axis Cutting
Laser cutting is ideal for the production of asymmetrical and angled designs of the tube. Conventional technology is unable to accommodate these. The technology is able to cut complex shapes at a time without multiple setups.
These are more features when applied in a lightweight vehicle structure. The multi-axis cutting feature makes it possible to shape 3D features within the tube. Manufacturers can create doors with mounting holes, slots, and notches without needing extra steps. This incorporation lowers production stages and raises the accuracy of parts.
Reduced Material Waste
Optimal nesting algorithms maximize the use of the material by reducing wastage. Laser cutting minimizes material wastage. This is due to the thin kerf width of the laser cutting compared to a mechanical cutter. This efficiency is especially useful when using expensive materials like stainless steel or aluminium alloy.
Improved material utilization has a direct implication on the costs of production. According to the US EPA ( Environmental Protection Agency), Fewer wastes imply lower material expense per part and reduced environmental distress. This efficiency gains momentum as the cost of materials will only increase.
Seamless Integration into Automation Lines
The systems can be utilized with ease in robotic welding, assembly, and bending tube lines. The integration makes lights-out manufacturing possible. Systems are automated and do not need a human assistant. The automation technologies save labor and produce consistently.
The industrial revolution and the improvement in manufacturing depend on integrated production lines. Laser cutting is easily integrated into such highly automated systems. The technology underpins the Industry 4.0 vision of smart, connected manufacturing.
Lower Long-Term Operational Costs
Laser cutting alleviates tooling wear, and frequent tool breaks are not needed. The laser systems cut using no physical contact with the material, like in mechanical cutting. Tool wear in this non-contact process is avoided, and maintenance is minimal.
Laser processing involves clean cuts, which implies that minimal post-processing procedures take place. Conventional processes usually demand polishing, cleaning, or other machining. The removal of such processes reduces labour costs, resources and production time.

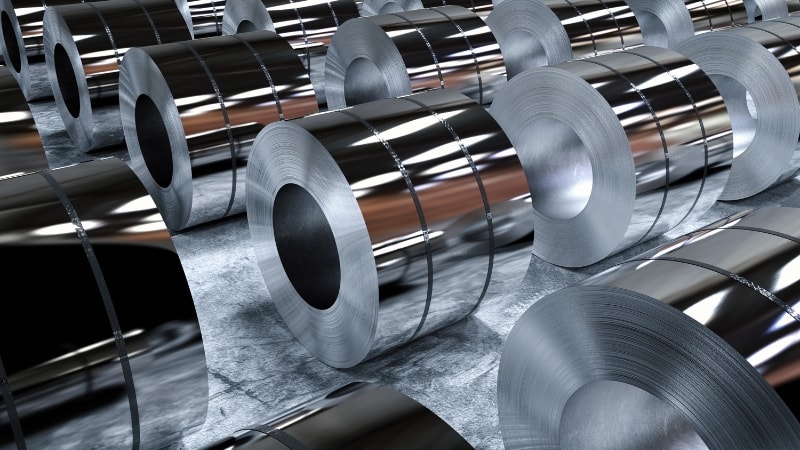

Materials Commonly Processed in Automotive Laser Tube Cutting
In the automobile industry, different materials are utilized in the manufacture of different products. Carbon steel is the most common material for structural components. This is because it is the strongest and the cheapest. Laser cutting is very efficient in working with carbon steel in different thicknesses.
Exhaust systems and decorations also need stainless steel. The corrosion resistance of the material makes it very suitable for these applications. Laser cutting creates clean edges. There are no heat-affected areas that would interfere with corrosion resistance.
Lightweighting efforts rely more and more on aluminium alloys. They have a high strength-to-weight ratio; however, they may be difficult. The thermal conductivity of aluminium is well-handled in laser cutting. Also, aluminium cuts do not melt or distort.
High-strength low-alloy (HSLA) steel is a combination of strong and formable steel. This material is commonly used in safety components, as it offers both strength and low weight. Laser cutting does not alter the qualities of the material but produces accuracy in size.
How Laser Tube Cutting Supports Automotive Lightweighting Goals
Car manufacturers are preparing to produce lighter automobiles. This is to control fuel consumption and increase the range of electric cars. The trend demands new structural design and construction techniques. The laser-cut process allows the use of thinner-walled tubes with no loss of strength.
Laser cutting has precision capabilities that allow optimization of structures. Engineers are also able to create intricate shapes that place the load in a better way. This optimization involves reducing material while sustaining or enhancing associated structural performance.
Laser cutting enables a stronger joint due to a precise fit-up and minimal heat input during welding. More efficient joints imply that the overall structure can be lighter. The structure can still meet the safety requirements. This technology reduces part count by combining functions into one piece.
Challenges Solved by Laser Tube Cutting in Auto Production
Laser-cutting tubes has transformed automobile production by addressing the most important issues. Traditional techniques can bear unreliable outcomes because of the wear of tools.
This enhances inappropriate part assembly and affects structural integrity. With laser cutting, this inaccuracy is removed, and all parts will be cut to an exact dimension. In addition, in traditional operations, there is much downtime due to manual handling and changes in using tools.
A laser tube-cutting machine automates all these processes. It helps cut down idle time significantly to enhance the overall effectiveness of the equipment.
- Precision: Perfect fitment of consistent tolerances of 0.1mm.
- Consistency: Removes the variance in quality in large-volume runs.
- Reduced Downtime: No tool changes and automatic operation.
- Error Reduction: Removes human error by executing repeatable automated processes.
The results of this precision and automation are a high-quality laser weld, quicker assembly, and ultimately safer, more reliable cars. This also leads to a simultaneous reduction of long-term operational costs.
Conclusion
Laser tube cutting is becoming the key aspect of new-age automobile production. The technology offers precision, speed, and flexibility for contemporary designs of complex vehicles. It’s not only convenient for making cuts. But it also enhances the quality of assembly and saves on production costs.
Laser cutting will continue to grow as cars are designed in a more technologically advanced way. Companies using laser tube cutting see better productivity, quality, and cost control.
The technology contributes to the industry’s shift toward more efficient and sustainable production. Adopting laser-cutting technology will make manufacturers successful in the competitive automobile market.
Do you want to enhance your automotive manufacturing? Consider Bison’s laser tube cutting!
Here in Baison, we have the best quality laser tube cutting machine so that you can improve your cutting experience and balance the speed and power of your manufacturing plant.
Get a quote now! And we will find a solution to your unique production and quality standards.
FAQ Section
What types of tubes are commonly laser-cut in automotive applications?
Automotive tubes are chassis frames, exhaust pipes, seat structures, suspension parts, and roll cages. Electric cars also include battery trays.
Is laser tube cutting suitable for aluminium and stainless steel?
Yes, both materials are excellent for laser cutting. It smoothly works with the thermal properties of aluminium and cuts stainless steel with corrosion-resistant slices.
Can laser cutting be used for electric vehicle components?
Absolutely. The laser-cutting process can be utilised in EV battery trays, structural parts, and lightweight alloy parts. These demand accurate sizes and clean cuts.
What’s the ROI of switching from traditional to laser tube cutting?
The ROI is normally 12-24 months, dependent on production volume. Advantages are that the costs of labor are reduced, quality is improved, production is quicker and fewer materials are wasted.
